Repair Procedures: Removal

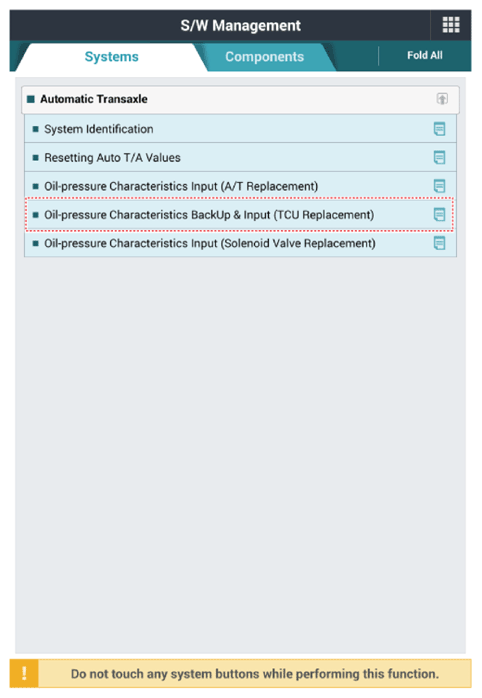

- Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

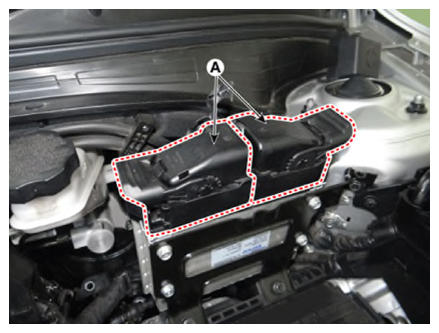

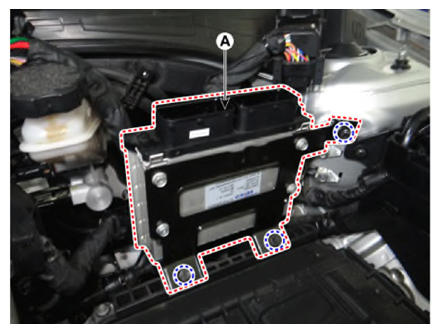

- Disconnect the TCM connectors (A).
- Remove the TCM (A) after loosening the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

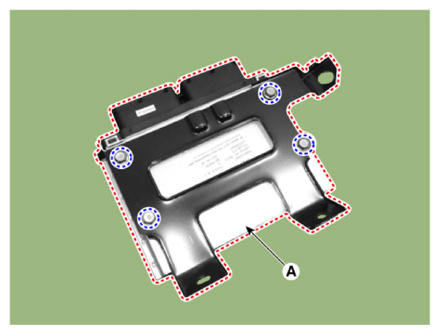

- Remove the TCM (A) after removing the nuts from the bracket.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
