Repair Procedures: Removal
- Intelligent Variable Transmission (IVT) is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
- Maintain clean condition so that foreign substance does not get into the Intelligent Variable Transmission (IVT).
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the Intelligent Variable Transmission (IVT).
- Remove the valve body assembly.
(Refer to Hydraulic System VALVE BODY

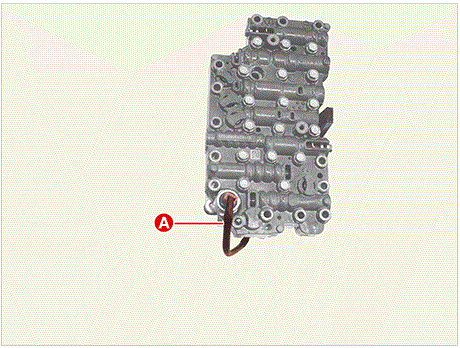

- Disconnect the pressure sensor connector (A).

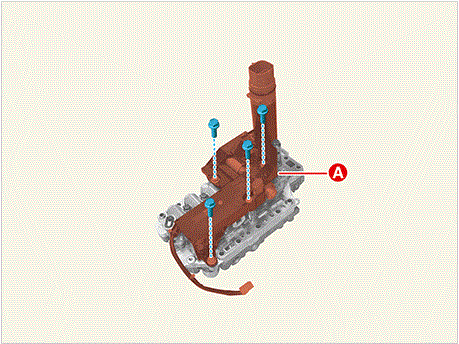

- Remove the E-Module (A) after removing the bolts.
