2021 Kia Forte FE, Standard TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

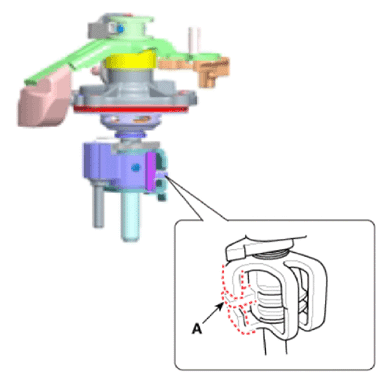

When installing, set control shaft lever to neutral position (A).

Courtesy of KIA MOTORS AMERICA, INC.

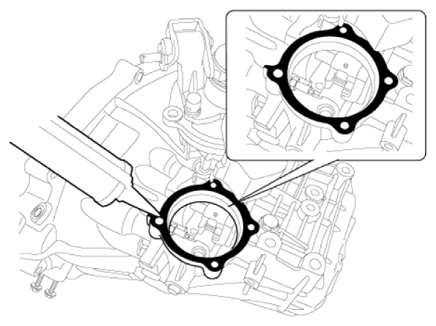

Apply the sealant to the contact surface of transaxle and control shaft.

Specified sealant: Anaerobic adhesive for flange

Courtesy of KIA MOTORS AMERICA, INC.
