2021 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

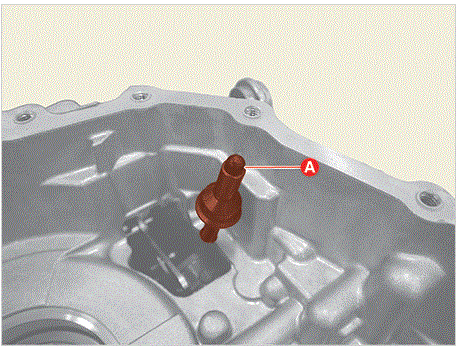

Before mounting, replace the parking rod cam if there are excessive flaws on the outside of the parking rod cam (A).

Courtesy of KIA MOTORS AMERICA, INC.

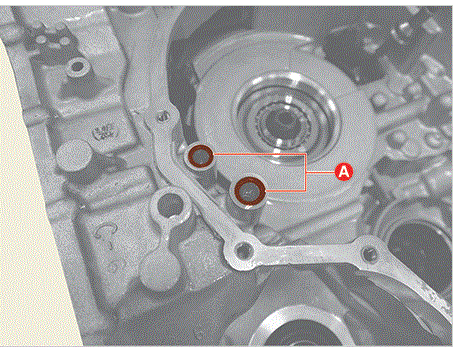

Make sure that there is an O-rings (A) on the side of the case.

Courtesy of KIA MOTORS AMERICA, INC.

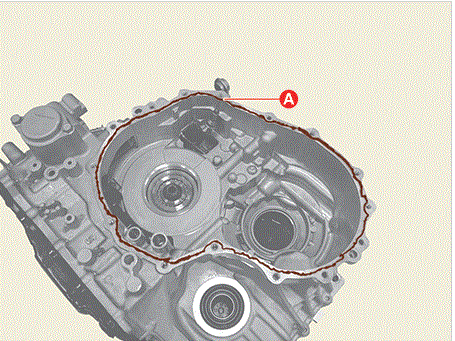

Apply sealant on the IVT case side (A).

Standard sealant :

Bead diameter :

Courtesy of KIA MOTORS AMERICA, INC.

Check the IVTF level after refilling the IVT with fluid.
(Refer to Transmission Gear Oil - "Replacement")
