Place the shift lever in the 'N' position.
Remove the IVTF drain plug, allow the fluid to drain out and then reinstall the drain plug.
(Refer to Hydraulic System - "FLUID ")
Remove the Intelligent Variable Transmission (IVT).
(Refer to Intelligent Variable Transmission (IVT) - "REMOVAL Removal")

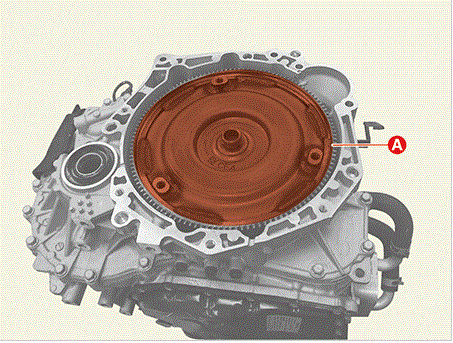

Remove the torque convertor (A) from convertor housing.

Courtesy of KIA MOTORS AMERICA, INC.

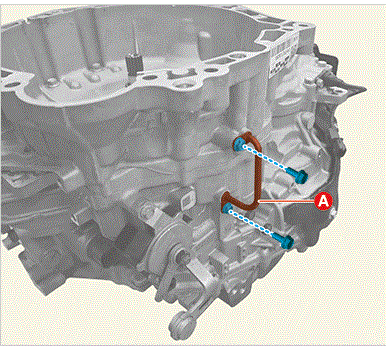

Remove the air breather pipe (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

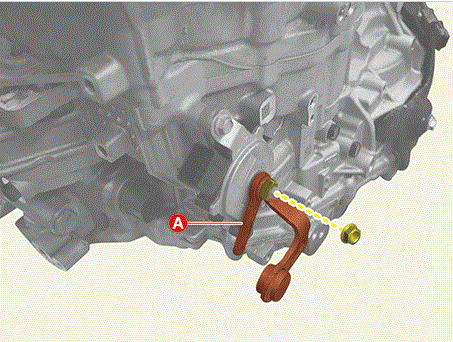

Remove the manual control lever (A) and the washer after removing the nut.
Tightening torque :

17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

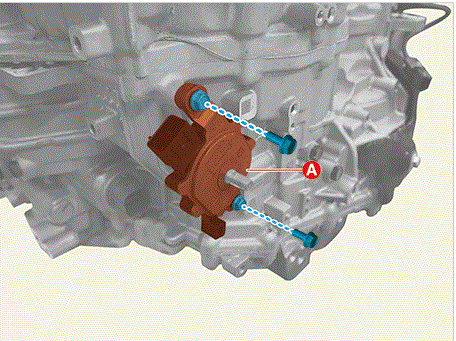

Remove the position switch (A) after removing the bolts.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

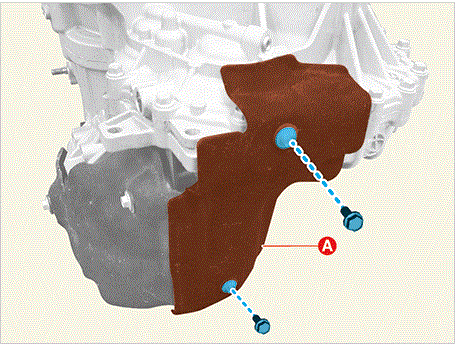

Remove the sound absorption cover (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

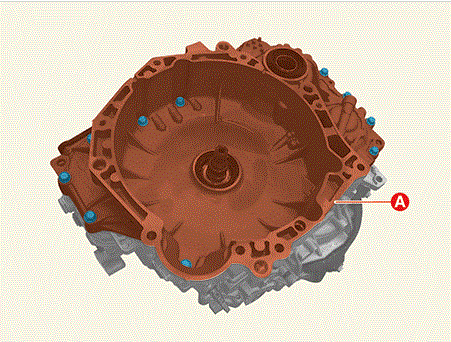

Remove the torque convertor housing (A).
Tightening torque :

27.5 - 34.3 N.m (2.8 - 3.5 kgf.m, 20.1 - 25.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

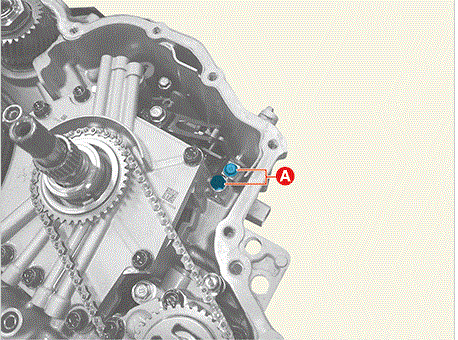

Remove the bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

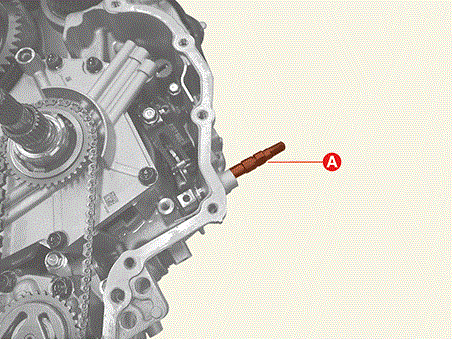

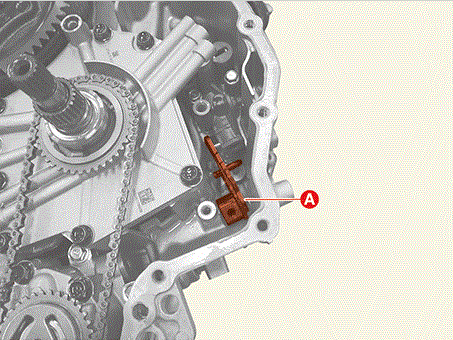

Remove the manual control shaft (A).

Courtesy of KIA MOTORS AMERICA, INC.

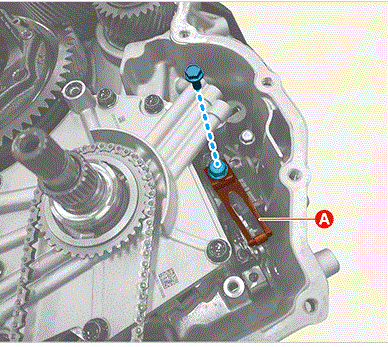

Remove the detent spring assembly (A).
Tightening torque :

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

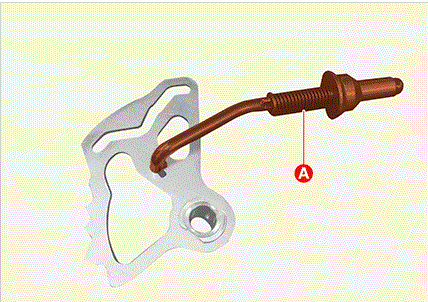

Remove the parking rod assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the parking rod cam (A).

Courtesy of KIA MOTORS AMERICA, INC.

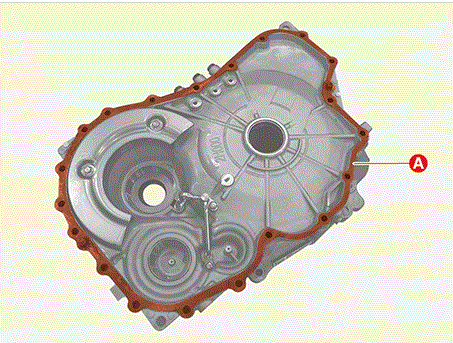

Use a scraper to remove the remaining sealant (A) on the housing of the IVT.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
