Repair Procedures: Replacement
- Be sure to use the genuine IVTF (SP-CVT1).
- When replacing with non-genuine IVT fluid, bad shift and vibration may occur, causing damage to the IVT.
- Non-genuine IVT fluid includes aftermarket IVT fluid indicated as interchangeable with genuine Kia fluid.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

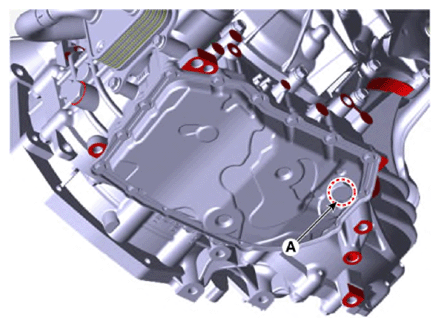

- Remove the IVTF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
34.3 - 39.2 N.m (3.5 - 4.0 kgf.m, 25.3 - 28.9 lb.ft)
NOTE: The existing IVTF drain plug gasket must be replaced with a new one. (Do not reuse it.) - Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

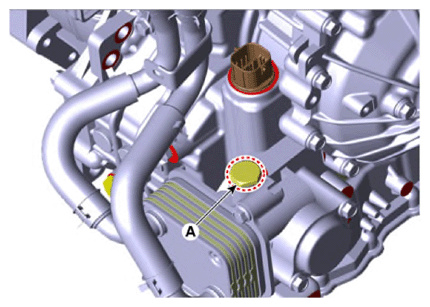

- Remove the IVTF injection plug (A).
- Fill the intelligent variable transmission with about 5.0 liters of SP-CVT1 through the IVTF filler hole.
- Perform the IVTF level check procedure.
(Refer to Fluid - "INSPECTION ")
