2021 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Variant Coding Procedures

In case of replacement of Front Camera Unit with a new one, it is required to perform variant coding because the vehicle has to study option specifications of old vehicle.

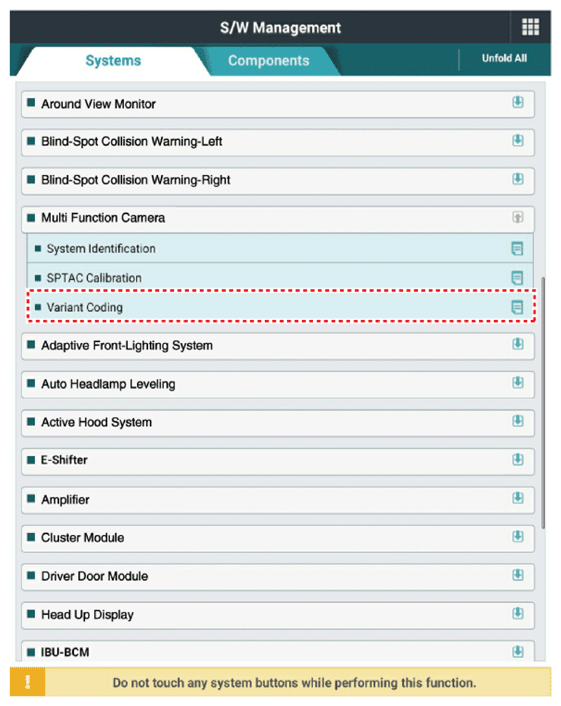

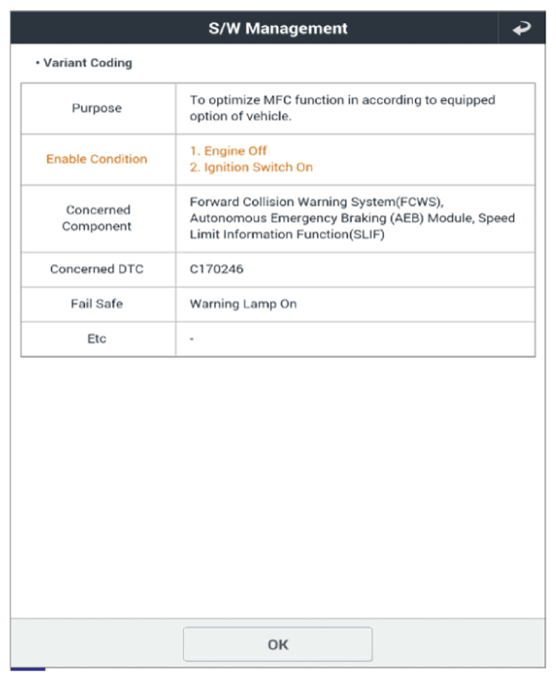

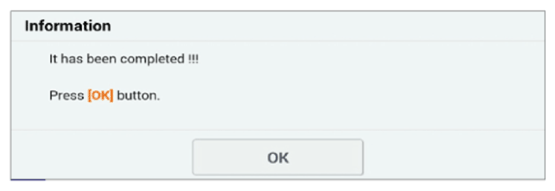

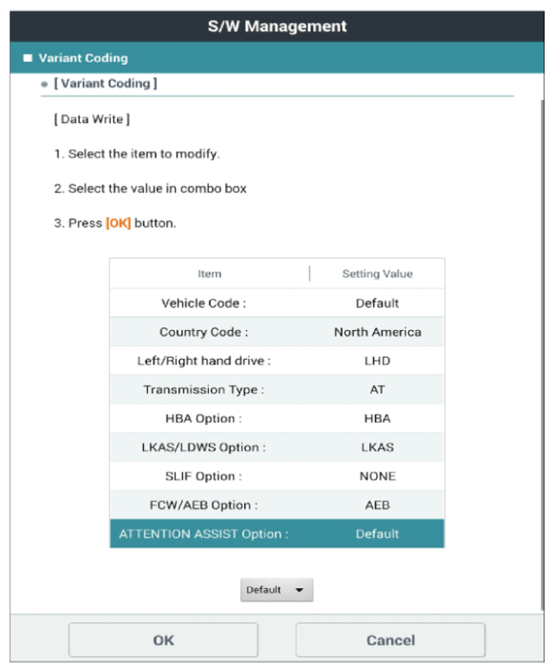

Finish the variant coding procedure following the information on the connected KDS screen.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
