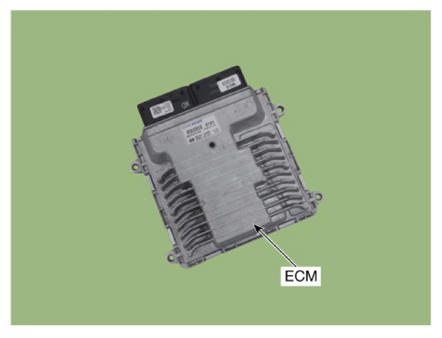

Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

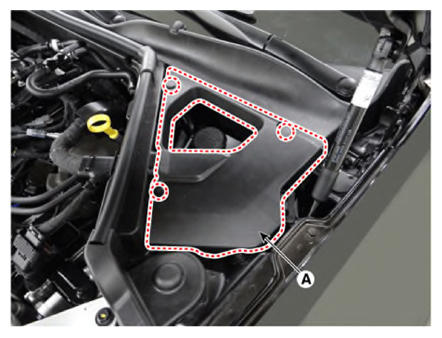

- Remove the engine side cover (A).

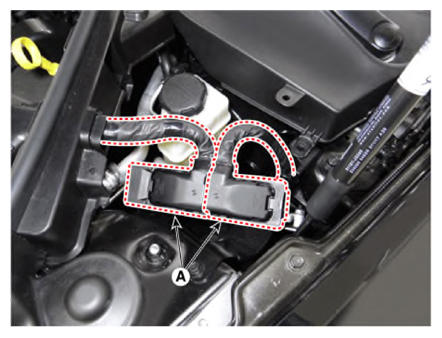

- Disconnect the ECM Connector (A).

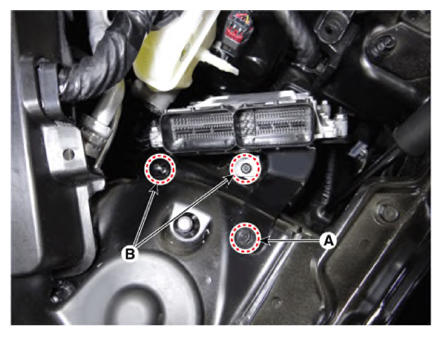

- Remove the ECM bracket assembly after loosening the mounting bolt (A) and nuts (B).
ECM mounting bolt/nut:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

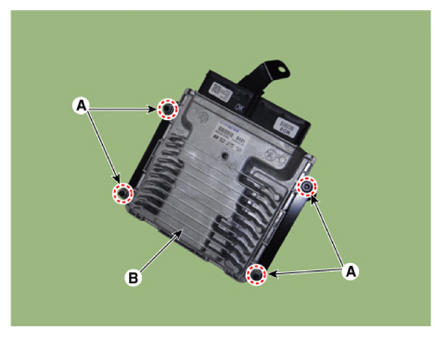

- Remove the ECM(B) after loosening the mounting nuts (A).
ECM bracket mounting bolt/nut:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
