2020 Kia Stinger GT-Line, AWDFACTORY OEM SERVICE PROCEDURE

Components And Components Location: Components

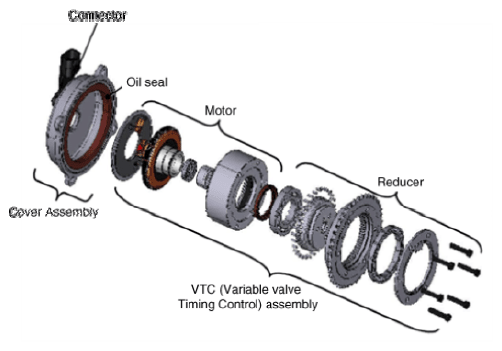

Appearance of E-CVVT is similar to that of hydraulic CVVT. Connector that drives DC motor and protection cover that protects the motor are mounted on the upper part. DC motor that drives the CVVT is mounted inside and covering part is sealed in order to protect oil from flowing inside.

G12792391Courtesy of KIA MOTORS AMERICA, INC.
