Repair Procedures: Removal
- Turn the ignition switch off and disconnect the battery (-) terminal.
- Remove the RCV control solenoid valve.
(Refer to "RCV CONTROL SOLENOID VALVE ")
- Remove the purge control solenoid valve.
(Refer to "PURGE CONTROL SOLENOID VALVE ")

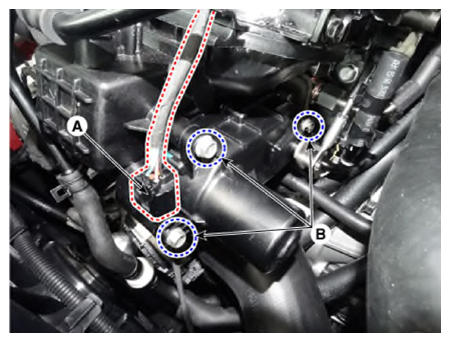

- Disconnect the variable charge motion actuator connector (A).
- Remove the variable charge motion actuator mounting bolts (B).

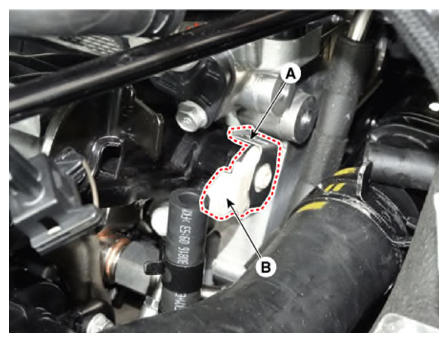

- Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.

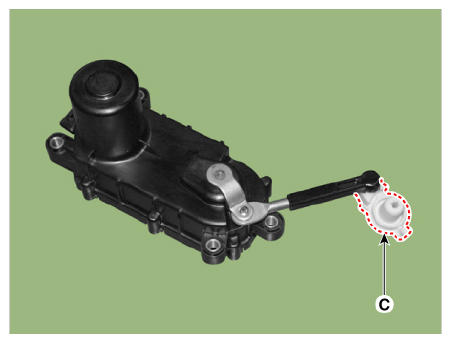

Make sure that groove part of the connection link (C) is pointing upward when mounting VCMA.
