Repair Procedures: Installation
- Install the fuel line in the reverse order of removal.
- Install the high-pressure fuel pipe as follows.

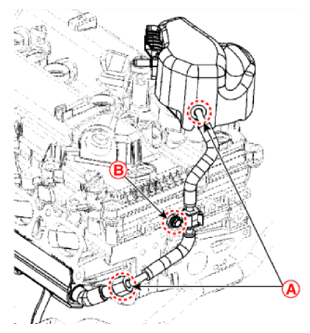

- Completely pre-tighten the both side nuts (A) on high pressure tightening area of high pressure fuel pipe while keeping them vertically.
- Tighten the high pressure fuel pipe function block mounting bolt (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 -1.2 kg.fm, 5.8 - 8.7 lb.ft)
- Completely tighten the both side nuts (A) on high pressure tightening area of high pressure fuel pipe.
Tightening torque:
26.5 - 32.4 N.m (2.7 - 3.3 kg.fm, 19.5 - 23.9 lb.ft)
NOTE:- Do not reuse the high pressure fuel pipe.
- Be careful not to transform the shape of the high pressure fuel pipe.
- Torque wrench should not be tilt when you tighten the nut.
- Follow the order and the tightening torque when you assemble.
- Inspect fuel leakage after high pressure fuel pipe assembly.
- Use the special service tool (09314-3Q100) to install the high pressure fuel pipe.
