Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

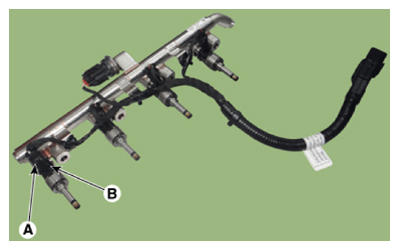

- Remove the connector (A) and the fixing clip (B), and then separate the injector from the delivery pipe.
