2020 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

NOTE: After replacing the Electric EGR control valve, MUST perform the "Component Change Routine" procedure. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.

Turn the ignition switch OFF.
Connect the KDS to Data Link Connector (DLC).
Turn ignition switch ON.
Select "Vehicle, Model year, Engine, System".
Select "Vehicle S/W Management".
Select "Component Change Routine".

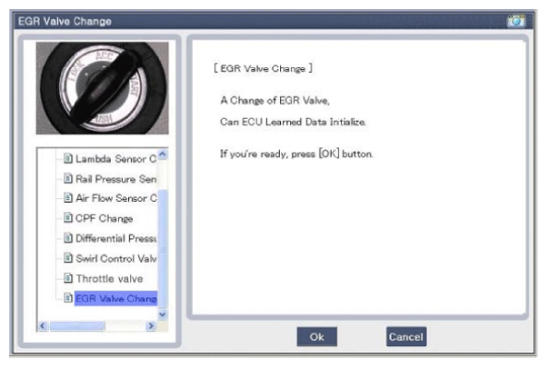

Select "EGR Valve Change".

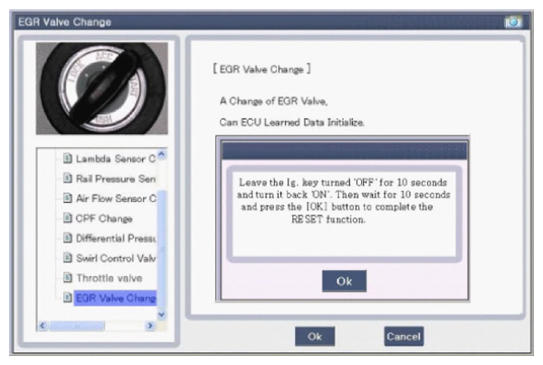

Perform the procedure in accordance with the message

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
