2020 Kia Optima Hybrid EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the negative (-) battery cable.
- Lift the vehicle.
- Remove the rear-left wheel & tire and house cover.

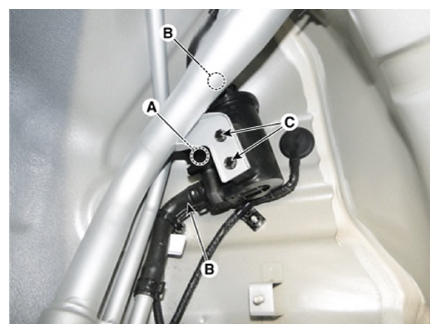

- Disconnect the canister close valve connector (A).
- Disconnect the ventilation hose (B).
- Remove the fuel tank air filter after removing the mounting bolts (C).

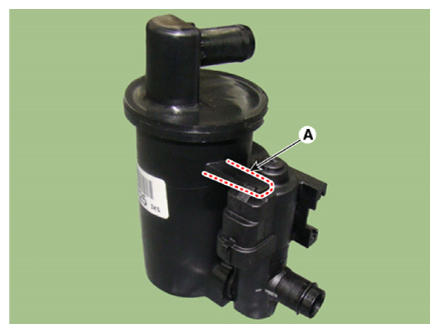

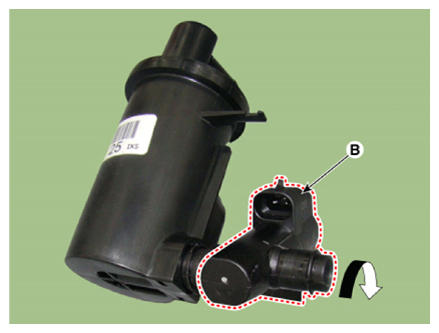

- Release the lever (A), and then rotate 30 degrees to the canister closed valve (B).
- Remove the canister close valve from the fuel tank air filter.
