2020 Kia Optima EXFACTORY OEM SERVICE PROCEDURE

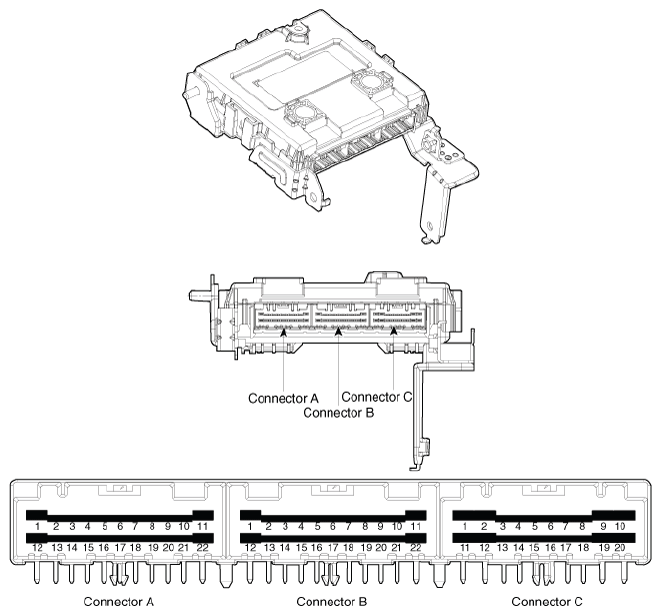

Components (1)
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | BAT (+)_Signal | IGN 2_Relay output | Immobilizer Antenna_Power |
| 2 | BAT (+)_Power | IGN 1_Relay output | Wheel speed sensor |
| 3 | Interior antenna 1 GND_output | - | SSB Switch 1 |
| 4 | Bumper antenna GND_output | - | - |
| 5 | Interior antenna 2 GND_output | ESCL CAN | ESCL Unlock switch |
| 6 | Assist door antenna GND_output | EMS CAN | "P" position switch |
| 7 | Trunk antenna GND_output | B-CAN (High) | Brake switch |
| 8 | Driver's door antenna GND_output | B-CAN (Low) | IG2 |
| 9 | - | C-CAN (Low) | IG1 |
| 10 | SSB Illumination (+) | C-CAN (High) | Starter relay |
| 11 | Exterior buzzer | - | Immobilizer antenna_GND |
| 12 | ESCL (+) | ACC_Relay output | RPM signal |
| 13 | - | - | SSB Switch 2 |
| 14 | Interior antenna 1 power_output | GND | Driver's toggle button switch_signal |
| 15 | Bumper antenna power_output | - | Passenger toggle button switch_signal |
| 16 | Interior antenna 2 power_output | SSB LED (ACC) | Starter relay feedback signal |
| 17 | Trunk antenna power_output | SSB LED (IGN) | - |
| 18 | Assist door antenna power_output | - | ACC signal |
| 19 | Assist door antenna power_output | - | - |
| 20 | - | SSB Illumination (-) | GND power |
| 21 | ESCL Enable signal | - | |
| 22 | ESCL Enable GND | WCM |
