2020 Kia K900FACTORY OEM SERVICE PROCEDURE
Repair Procedures: Inspection
- Turn the ignition (switch) OFF.

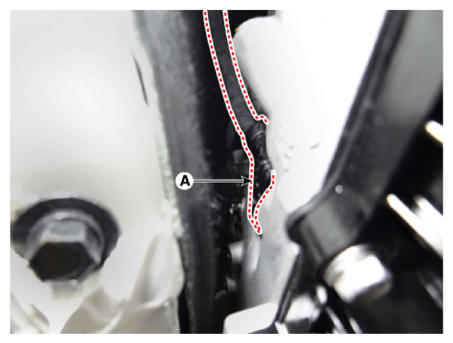

- Disconnect the main connector (A).
- Measure the resistance between + terminal (15) and - terminal (16).
- Check that the resistance is within the specification.
| Item | Specification | |
|---|---|---|
| Oil temperature sensor | Type | *NTC thermistor |
| Temp.[(Β°C)Β°F]/Resistance (kΞ©) | (-40)-40/139.5 | |
| (-20)-4/47.4 | ||
| (0) 32/18.6 | ||
| (20) 68/8.1 | ||
| (40) 104/3.8 | ||
| (60) 140/1.98 | ||
| (80) 176/1.08 | ||
| (100) 212/0.63 | ||
| (120) 248/0.38 | ||
| (140) 284/0.25 | ||
| (150) 302/0.16 | ||
