2020 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

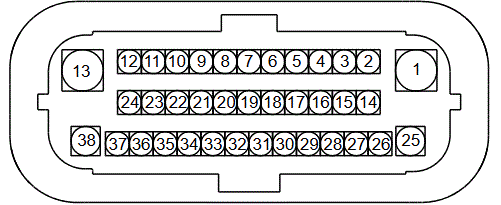

ESC Module Connector (E403)

Courtesy of KIA MOTORS AMERICA, INC.

1.	R	E/R Junction Block (Fuse - ABS 1)
2.	G	Stop Lamp Switch
3.	-	-
4.	P	Wheel Sensor Sensor Output (FR): IBU, PCM
5.	-	-
6.	Br	PCB Block (Fuse - ABS 3)
7.	-	-
8.	-	-
9.	-	-
10.	G/O	P-CAN (Low)
11.	Y	P-CAN (High)
12.	O	[With FCA] Crash Pad Switch (TPMS Switch)
13.	B	Ground (GE406)
14.	-	-
15.	-	-
16.	-	-
17.	-	-
18.	Br	C-CAN (Low)
19.	W	C-CAN (High)
20.	-	-
21.	-	-
22.	O	[W/O FCA] Crash Pad Switch (TPMS Switch)
23.	-	-
24.	-	-
25.	Gr	E/R Junction Block (Fuse - ABS 2)
26.	R	Front Wheel Sensor RH (FR SIG)
27.	L	Front Wheel Sensor RH (FR VCC)
28.	-	-
29.	O	Rear Wheel Sensor LH (RL VCC)
30.	G	Rear Wheel Sensor LH (RL SIG)
31.	-	-
32.	Gr	Crash Pad Switch (ESC OFF Switch)
33.	B	Rear Wheel Sensor RH (RR SIG)
34.	Y	Rear Wheel Sensor RH (RR VCC)
35.	-	-
36.	B	Front Wheel Sensor LH (FL VCC)
37.	Y	Front Wheel Sensor LH (FL SIG)
38.	-	-
