2020 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

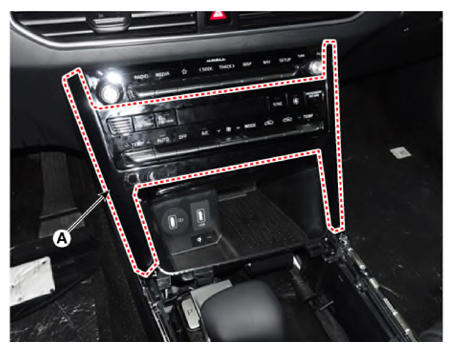

Remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

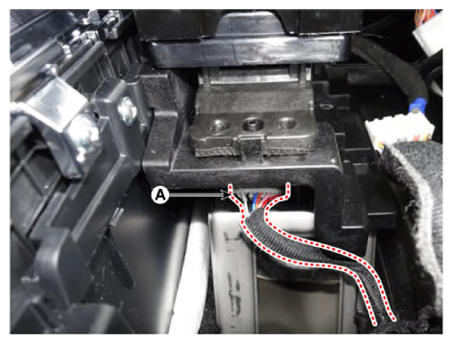

Disconnect the connector (A) from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.

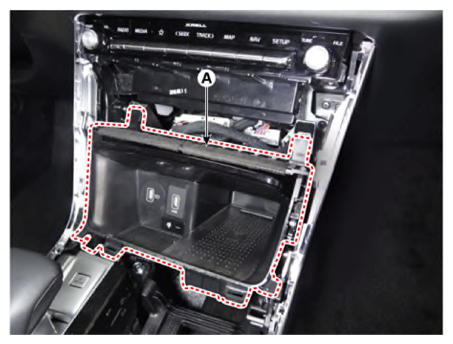

Remove the A/C controller (A).

Courtesy of KIA MOTORS AMERICA, INC.

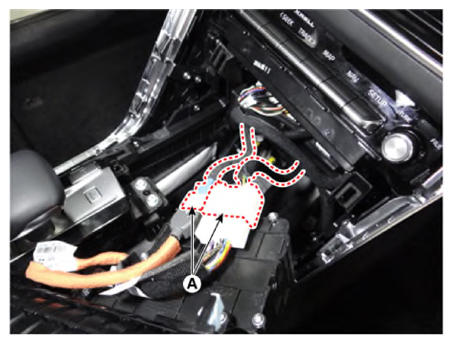

Disconnect the A/C controller connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

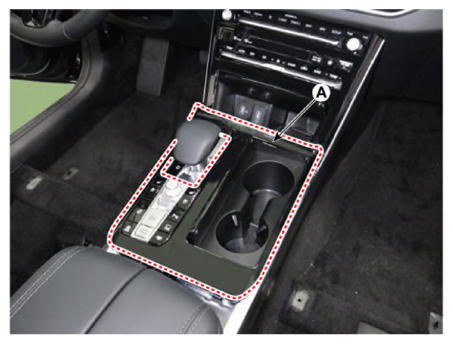

Remove the front console tray (A).

Courtesy of KIA MOTORS AMERICA, INC.

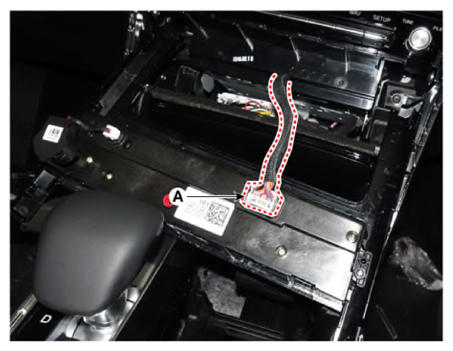

Disconnect the connector (A) from the front console tray.

Courtesy of KIA MOTORS AMERICA, INC.

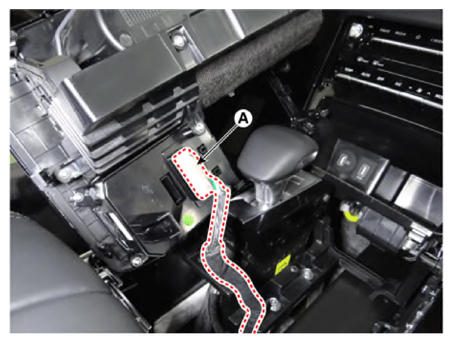

Disconnect the E-shifter connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

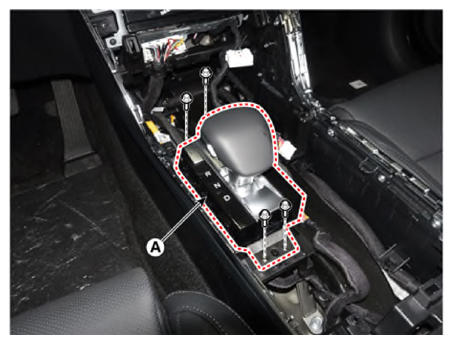

Remove the E-shifter (A) by loosening the bolts.
Tightening torque:

8.8-13.7 Nm (0.9- 1.4 kgf.m, 6.5-10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
