2020 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

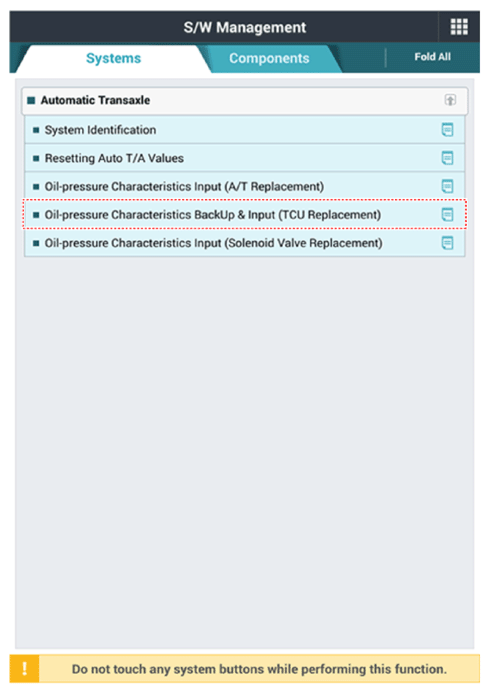

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the battery negative cable.

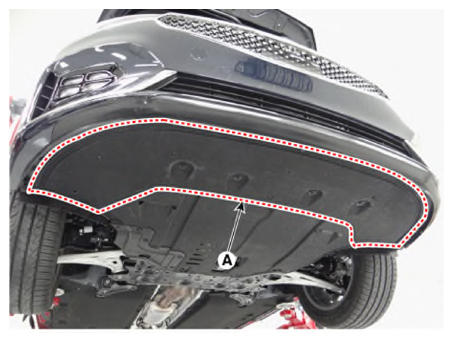

Remove the under cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

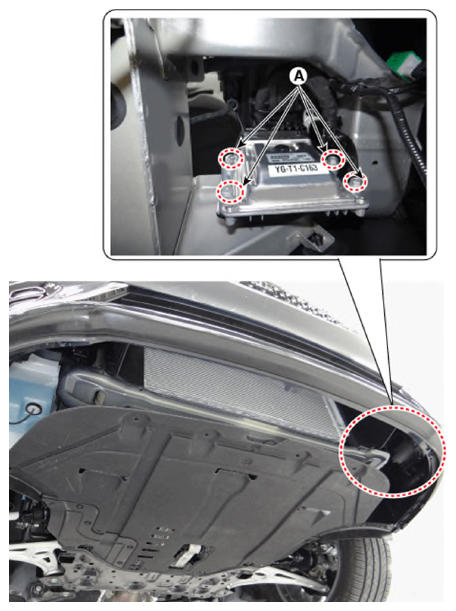

Loosen the TCM mounting bolts (A).
Tightening torque:

9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

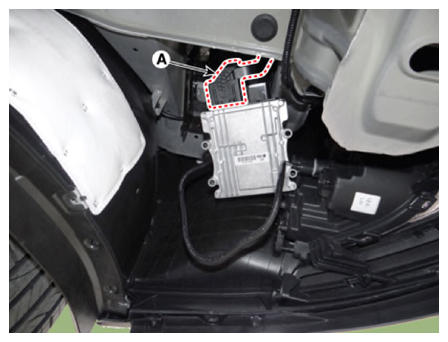

Disconnect the TCM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
