Repair Procedures: Installation

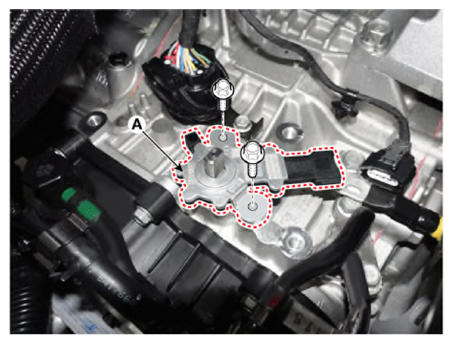

- Install the position sensor (A).NOTE: Lightly tighten the position sensor mounting bolts so that necessary adjustments can be made.

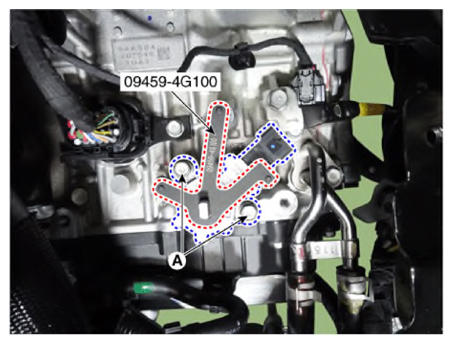

- Tighten the bolts to the specified torque after installing the SST (09459 - 4G100).
Tightening torque:
9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)
- Connect the position sensor connector after removing the SST (09459-4G100).
- Install the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")
