Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

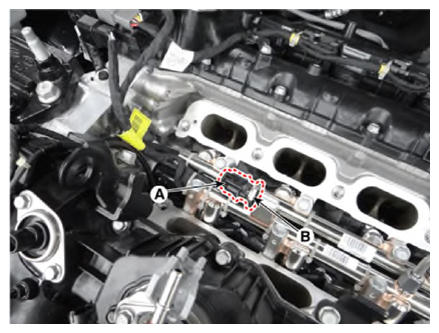

- Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
Rail Pressure Sensor:
29.4 → 34.3 Nm (3.0 → 3.5 kgf.m, 21.7 → 25.3 lb.ft)
