Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

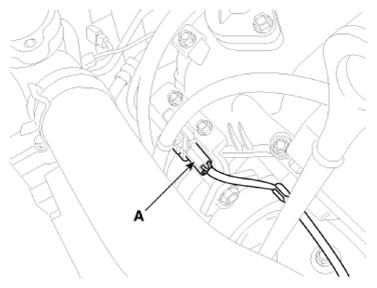

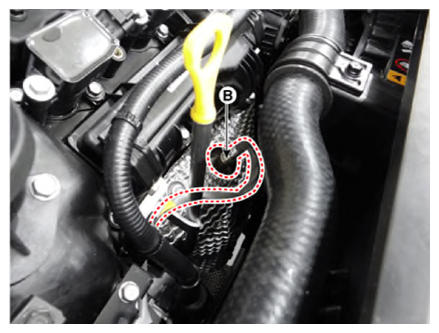

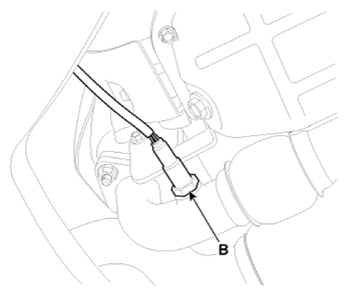

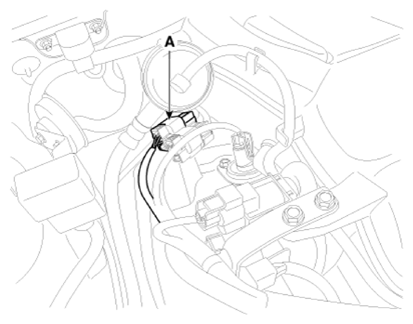

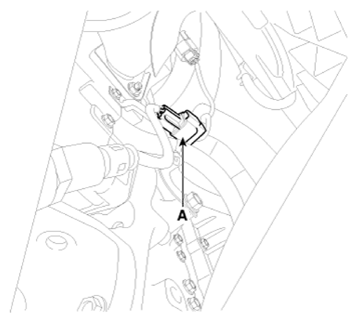

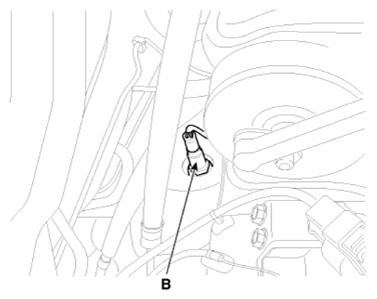

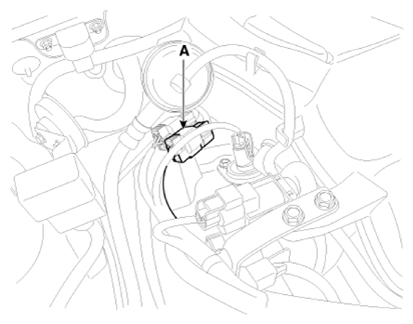

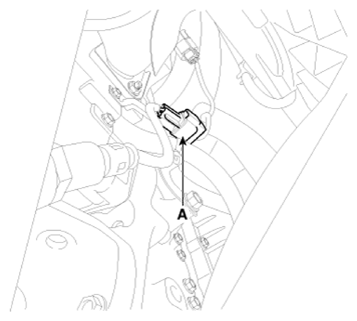

- Remove the oxygen sensor (B) after disconnect the Connector (A).NOTE: Note that the SST (Part No.: 09392-2H100 or 09392-1Y100) can be used for removing the heated oxygen sensor.
Heated oxygen sensor:
35.3 → 45.1 Nm (3.6 → 4.6 kgf.m, 26.0 → 33.3 lb.ft)
[Bank 1/Sensor 1]
[Bank 1/Sensor 2]
[Bank 2/Sensor 1]
[Bank 2/Sensor 2]
