Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

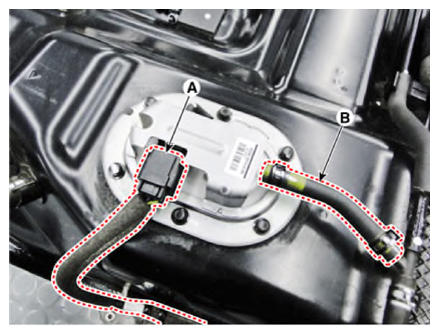

- Disconnect the fuel tank pressure sensor connector (A).
- Disconnect the vapor hose (B).

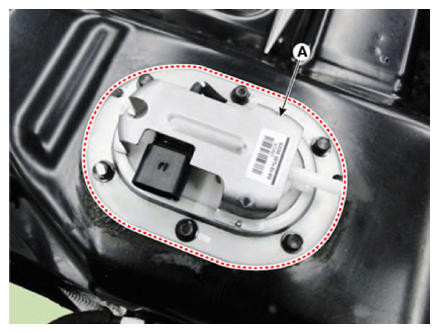

- Remove the 2 way cup valve plate (A) after removing the bolts.
- Release the hooks and then remove the fuel tank pressure sensor from the fuel pump.
