2020 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

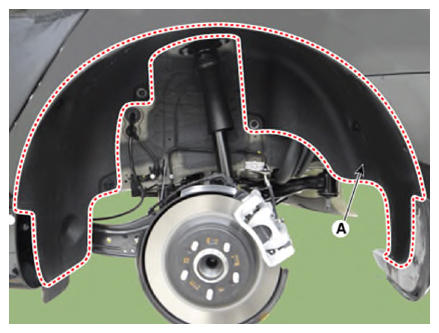

- Remove the rear-LH wheel, tire, and the inner wheel house (A).

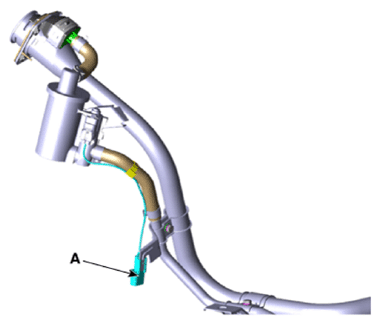

- Disconnect the canister close valve connector (A).

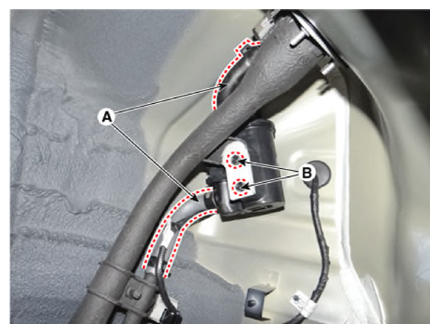

- Disconnect the vapor hoses (A).
- Remove installation bolts (B) and then remove the fuel tank air filter&CCV.

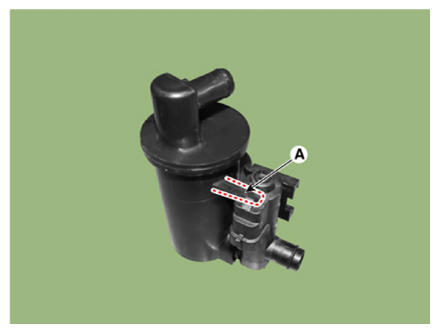

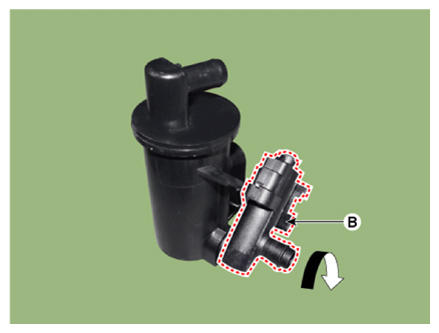

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
