Repair Procedures: Removal
CVVT Oil Control Valve [Bank 1/Exhaust]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - "CYLINDER HEAD ASSEMBLY ")

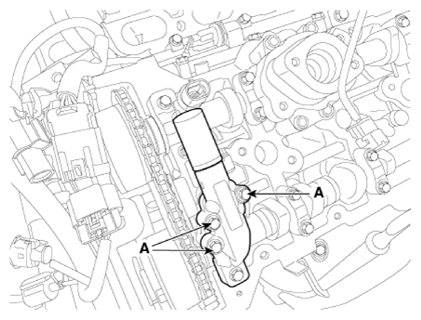

- Remove the installation bolt (A), and then remove the valve from the engine.
CVVT oil control valve mounting bolt:
9.8 - 11.8 Nm (1.0 → 1.2 kgf.m, 7.2 → 8.7 lb.ft)
CVVT Oil Control Valve [Bank 2/Exhaust]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - "CYLINDER HEAD ASSEMBLY ")

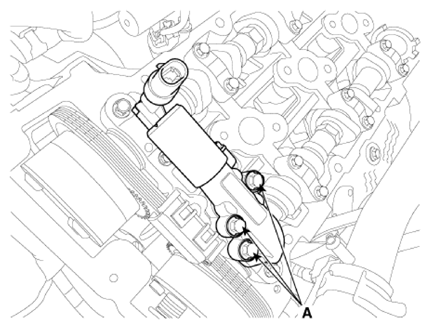

- Remove the installation bolt (A), and then remove the valve from the engine.
CVVT oil control valve mounting bolt:
9.8 - 11.8 Nm (1.0 → 1.2 kgf.m, 7.2 → 8.7 lb.ft)
