2019 Kia Soul Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

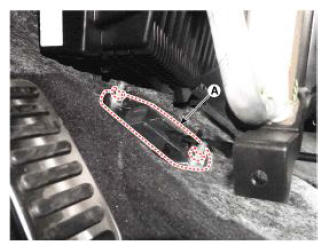

  1. Install the shift cable retainer (A).

    Tightening Torque:

    8.8 -13.7 N.m (0.9 - 1.4 kgf.m, 6.5 -10.1 lb-ft)

    G12599041Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Install the cable after placing the shift lever and the manual control lever in the N position.

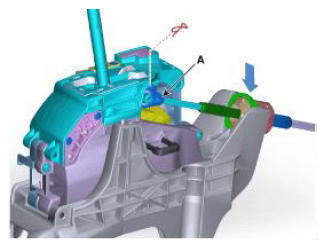

  2. Install the shift cable (A) in the shifter lever.
    G12599042Courtesy of HYUNDAI MOTOR AMERICA

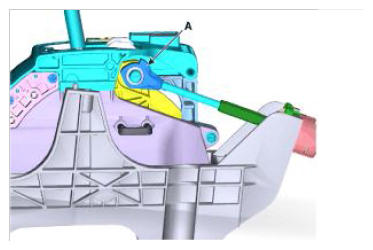

    CAUTION:
    • Lug (A) must assemble upward.
      G12599043Courtesy of HYUNDAI MOTOR AMERICA

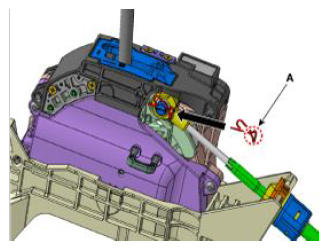

    • When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
    G12599044Courtesy of HYUNDAI MOTOR AMERICA

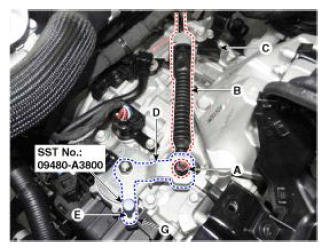

  3. Install the shift cable (B) in the cable bracket (C).
  4. Align the hole (E) in the manual control lever with the "N" position hole (G) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No: 09480-A3800).
  5. Lightly tighten the nut (A) after connected the shift cable (B) in the manual control lever (D).
  6. Push the shift cable (B) lightly to "F" direction displayed to eliminate free play of shift cable.
  7. Tighten the nut (A) to the specified torque.

    Tightening Torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)

    G12599045Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
  9. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  10. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  11. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  12. Install the air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  13. Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
