Repair Procedures: Removal
- When replacing the ECM, the vehicle equipped with the immobilizer must be performed procedure below.
[In The Case Of Installing Used ECM]
- Perform
"ECM Neutral mode" procedure with GDS.
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
- After finishing "ECM Neutral mode", perform
"Key Teaching" procedure with GDS.
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
[In The Case Of Installing New ECM]
- Perform
"Key teaching" procedure with GDS.
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
- Turn Ignition Switch OFF and disconnect the Negative (-) Battery Cable.
- Remove the Battery.
(Refer to Charging System - "BATTERY ")

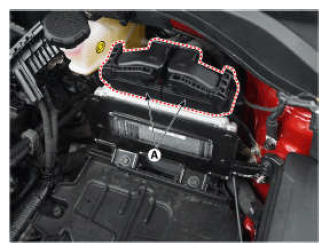

- Disconnect the ECM connector (A).

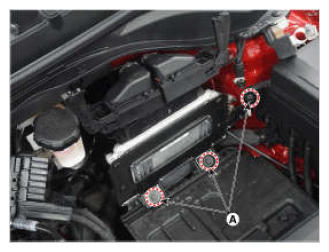

- Remove the Bracket Installation Bolts (A).

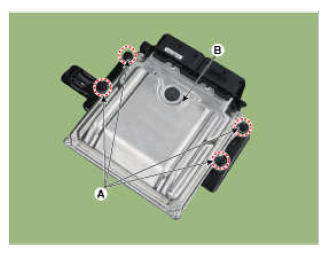

- Remove the installation nuts (A), and then remove the ECM (B) from the bracket.
