2019 Kia Rio LXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

Switch "OFF" ignition.
Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")

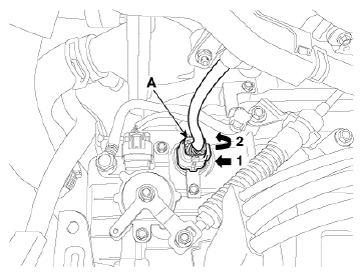

Disconnect the solenoid valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Measure the resistance between + terminal (9) and - terminal (13).

Courtesy of KIA MOTORS AMERICA, INC.

Check that the resistance is within the specification.

Item	Specification
Temp.[(°C)°F] / Resistance (kΩ)	(-40)-40 / 48.1
	(-20)-4.0 / 15.6
	(0)32.0 / 5.88
	(20)68.0 / 2.51
	(40)104.0 / 1.19
	(60)140.0 / 0.61
	(80)176.0 / 0.32
	(100)212.0 / 0.18
	(120)248.0 / 0.10
	(140)284.0 / 0.06
	(150)302.0 / 0.05
