2019 Kia Rio LXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Shift the gear to "N".
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER ")

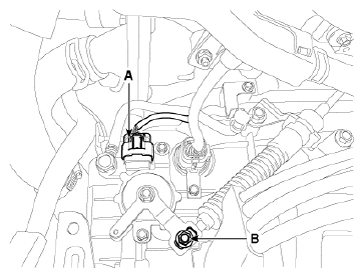

- Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).

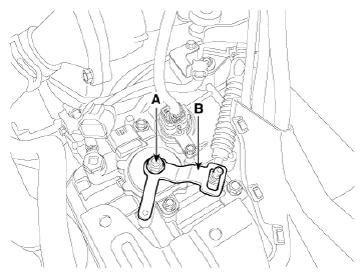

- Remove the manual control lever (B) and the washer after removing a nut (A).

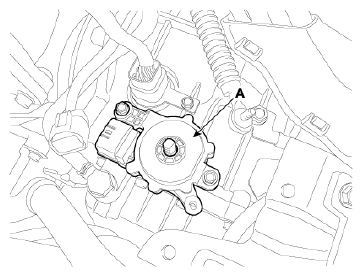

- Remove the inhibitor switch (A) after loosening the bolts.
