Repair Procedures: Removal
- Place the shift lever in the "N" position.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")

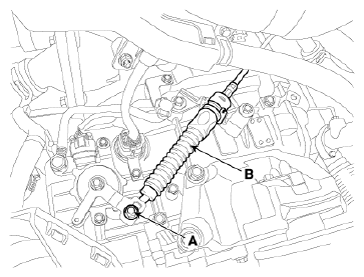

- Remove the shift cable (B) from the bracket after loosening a nut (A).

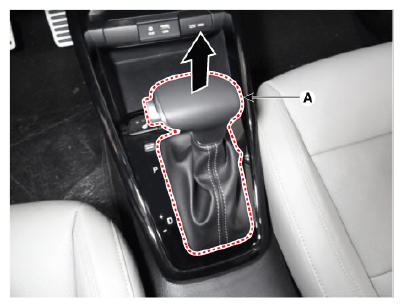

- Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.
- Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

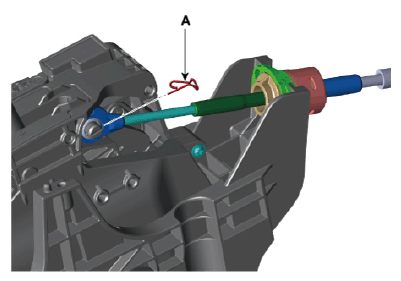

- Remove the shift cable from the shift lever pin after removing the snap pin (A).

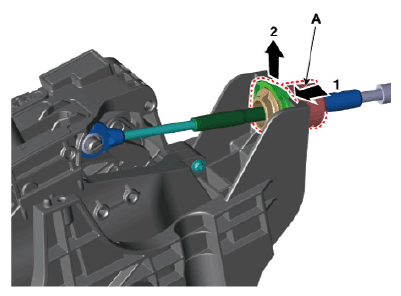

- Remove the cable socket (A) from the shift lever.

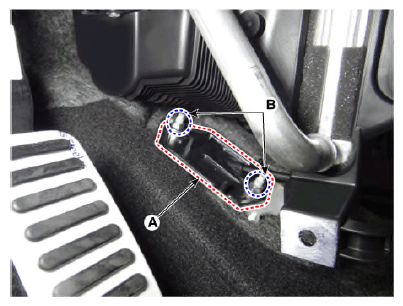

- Remove the shift cable retainer (A) after loosening the nuts (B). Then, remove the shift cable by pulling it toward the vehicle interior.
