Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - " DELIVERY PIPE ")

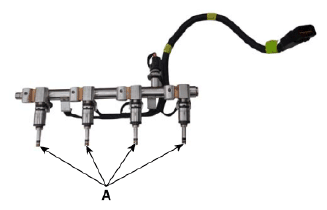

- Remove the connector, and then separate the injector (A) from the delivery pipe.
