Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assemble.
(Refer to Engine Mechanical System - " AIR CLEANER ")
- Remove the battery.
(Refer to Engine Electrical System - " BATTERY ")

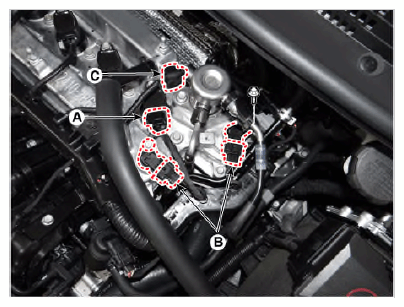

- Disconnect the ignition coil connector (A) and CMPS connector (B).
- Disconnect the FPCV connector (C).

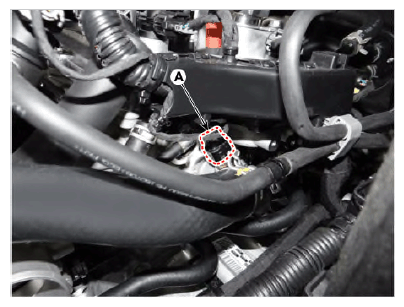

- Disconnect the engine coolant temperature sensor connector (A).

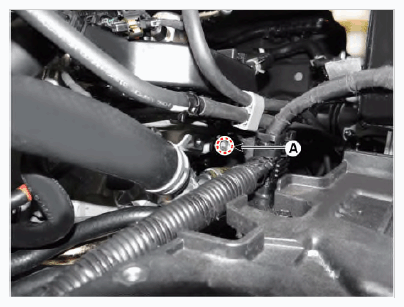

- Remove the vacuum pipe mounting bolts (A).

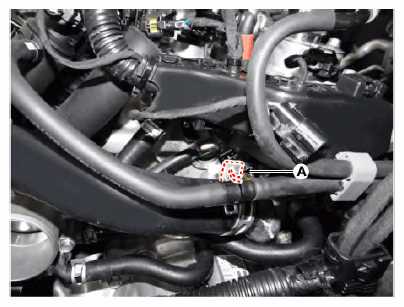

- Remove the engine coolant temperature sensor (A).
