2019 Kia Optima SFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING:
- DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.

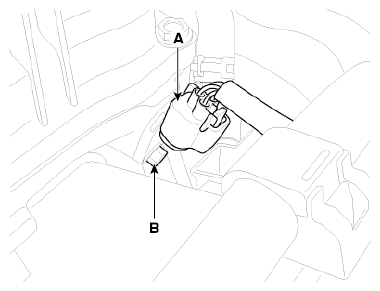

[Bank 1/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor.

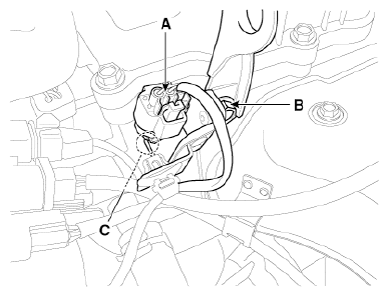

[Bank 1/Exhaust]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Disconnect the camshaft position sensor connector (A).
- Remove the engine hanger & camshaft position sensor protector after loosening the mounting bolt (B).
- Remove the mounting bolt (C), and then remove the sensor.

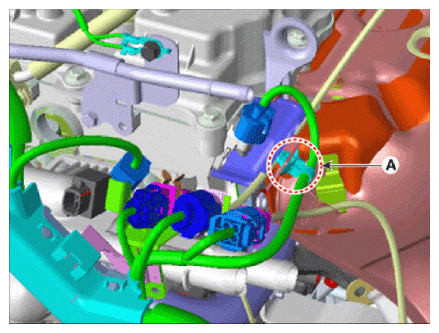

NOTE:
When installing the sensor connector be sure to keep the wiring clip position (A).
