2019 Kia Optima EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Check the resistance between terminals in each switch position (LH).

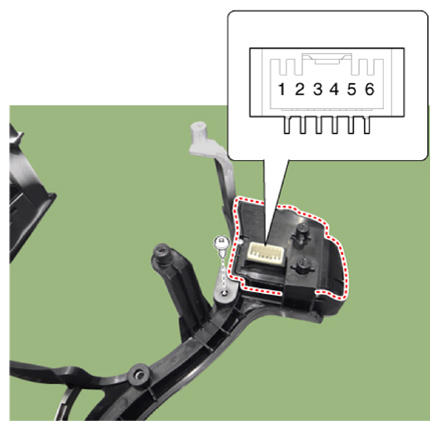

    G13157825Courtesy of KIA MOTORS AMERICA, INC.
    SWITCH AND CONNECTOR TERMINAL DESCRIPTION

    Switch Connector terminal Resistance (±5%)
    SEEK Up 2-5 430 Ω
    SEEK Down 1.11 kΩ
    MODE 2.11 kΩ
    MUTE 3.11 KΩ
    Volume (+) 4.61 kΩ
    Volume (-) 6.81 kΩ
    Voice 10.71 kΩ
    END 18.91 kΩ
    SEND 40.91 kΩ
  2. Check the resistance between terminals in each switch position (RH).

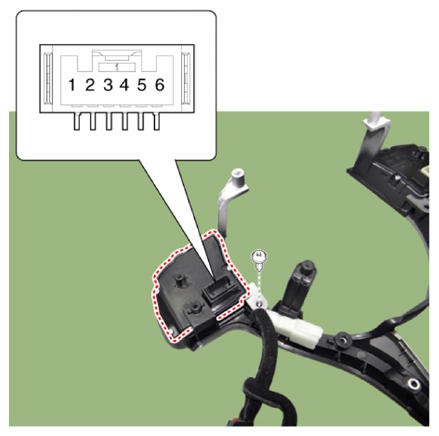

G13157826Courtesy of KIA MOTORS AMERICA, INC.
SWITCH AND CONNECTOR TERMINAL DESCRIPTION

Switch Connector terminal Resistance (±5%)
Cancel 3-5 390 Ω
SET - 610 Ω
RES + 910 Ω
Cruise ON/OFF 2.13 kΩ
SCC (Following distance control) 3.63 kΩ
Ground 2-5 390 Ω
Trip Up 610 Ω
Trip Down 910 kΩ
ENTER 1.38 kΩ
BACK 2.13 kΩ
