2019 Kia Optima EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

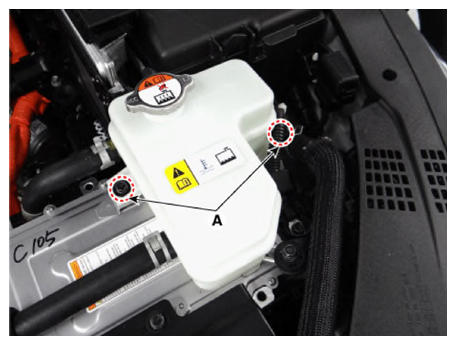

- Loosen the reservoir mounting bolts (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

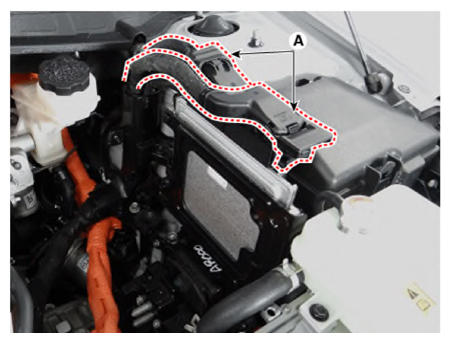

- Disconnect the TCM connector (A).

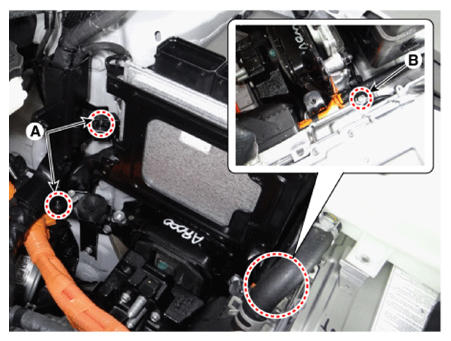

- Remove the TCM loosening the bolt (B) and nuts (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft
