2019 Kia Optima EXFACTORY OEM SERVICE PROCEDURE
Trunk Open Switch
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")

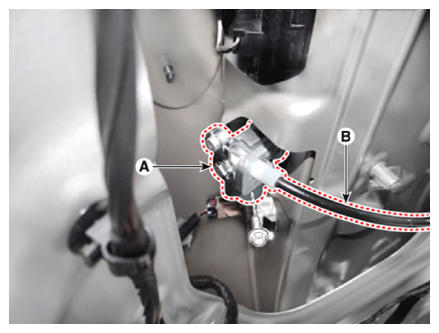

- Remove the trunk lid key holder (A) after loosening the mounting bolt.
- Disconnect the key holder cable (B).

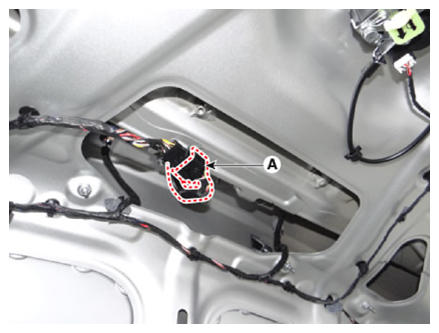

- Disconnect the trunk open switch connector (A).

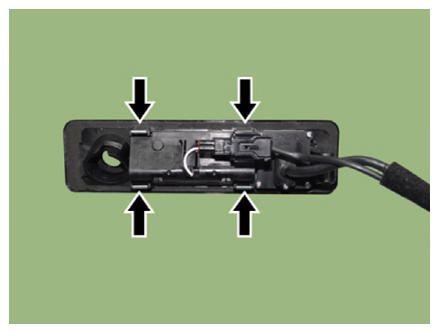

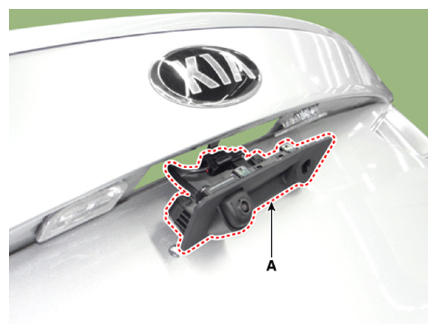

- Remove the trunk open switch assembly (A) after disengaging mounting clips.
