Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

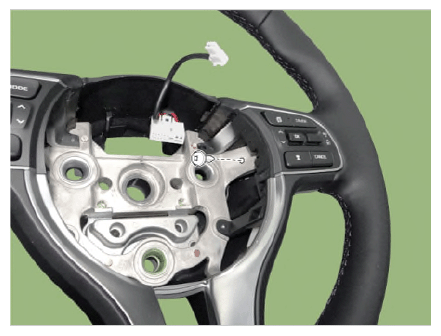

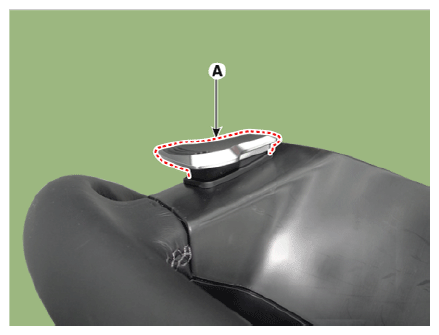

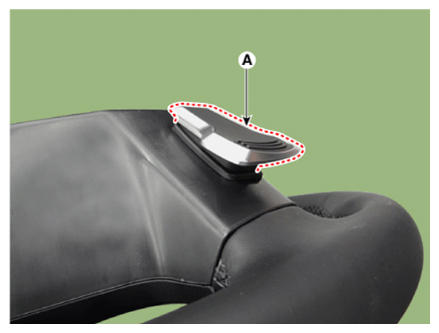

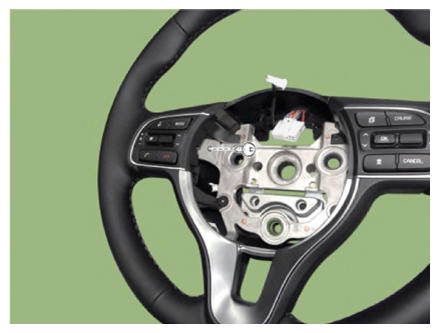

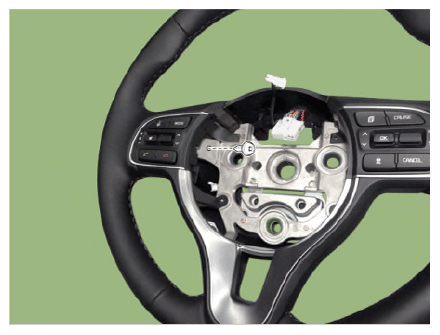

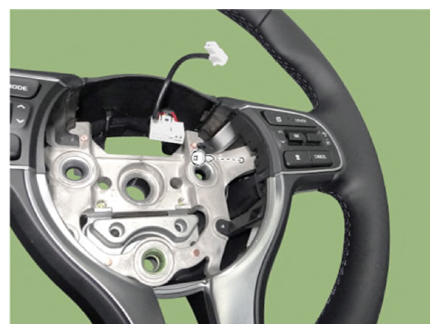

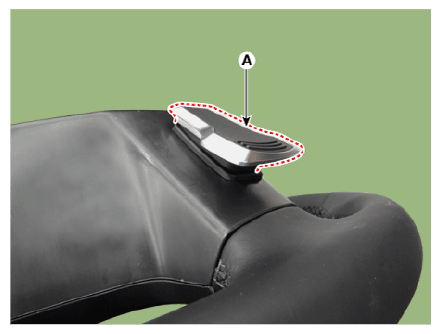

- Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]
[RH]

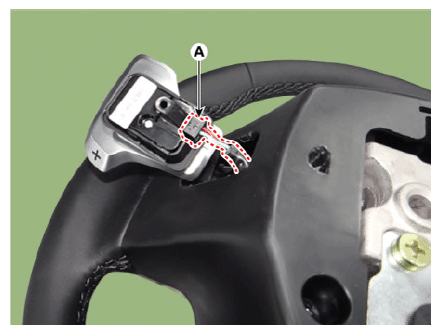

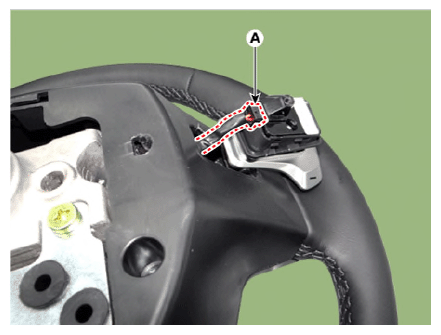

- Disconnect the paddle shift switch connector (A).
[LH]
[RH]

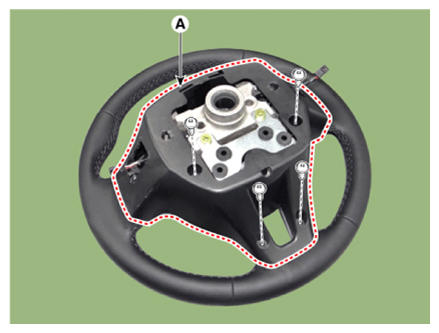

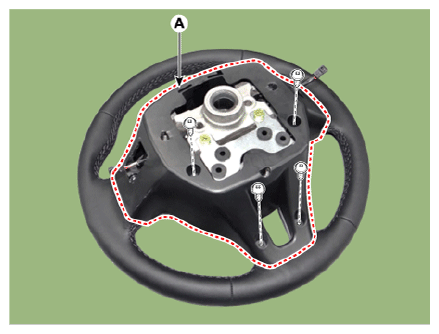

- Remove the screws from the steering back cover (A).

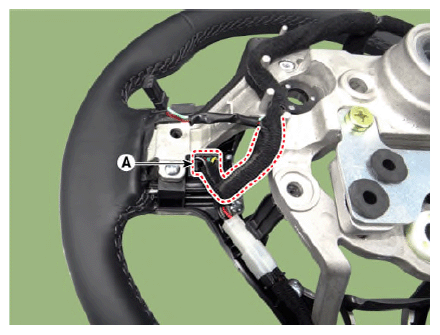

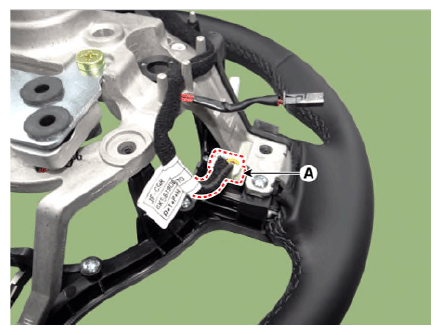

- Disconnect the steering remote control connector (A).
[LH]
[RH]

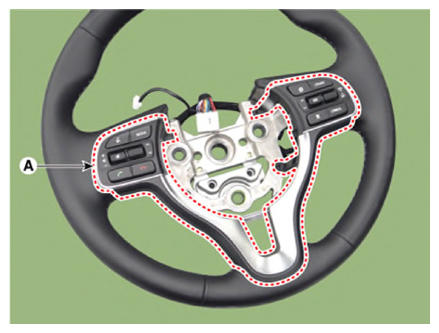

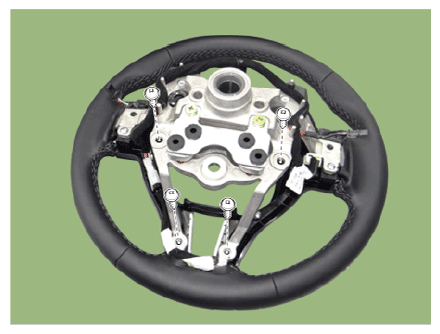

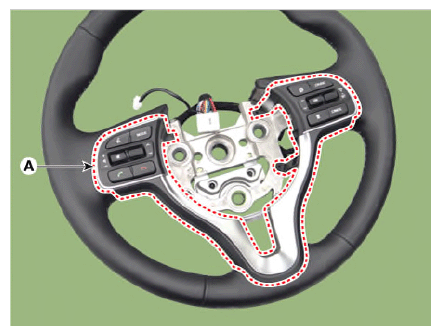

- Remove the steering remote control assembly (A) after loosening the mounting screws.

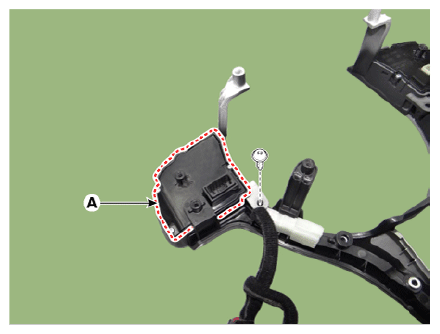

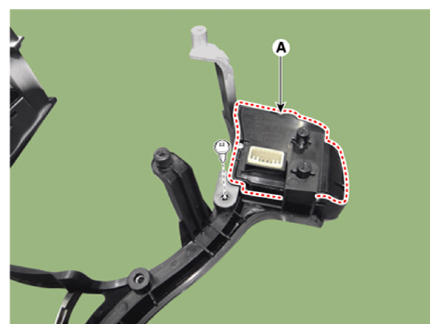

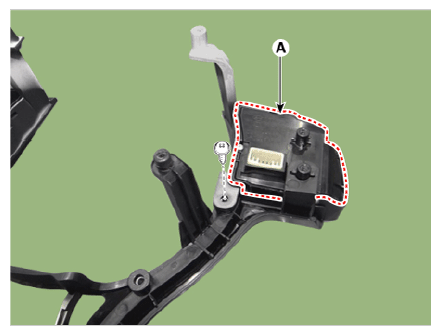

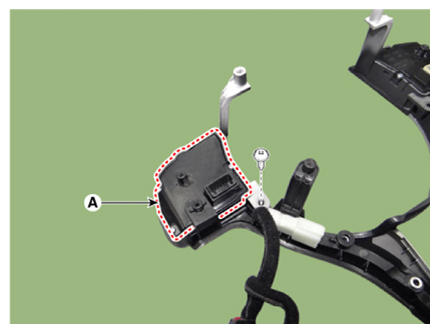

- Remove the steering remote control (A) after loosening the mounting screws.
[LH]
[RH]
