Repair Procedures: Removal
- Do NOT remove the camshaft position sensor with engine running or right after engine stops due to the possibility of scalding from hot engine oil flowing out.
[Bank 1/Intake]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the air cleaner.
(Refer to " AIR CLEANER ")

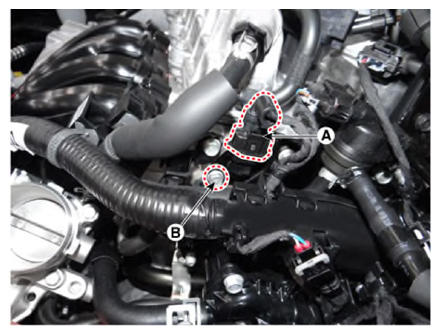

- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
Camshaft position sensor mounting bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.7 lb.ft)

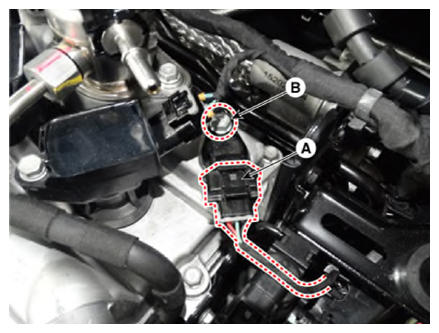

[Bank 1/Exhaust]
