2019 Kia Niro Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the steering wheel assembly.
(Refer to Steering System - " STEERING WHEEL ")

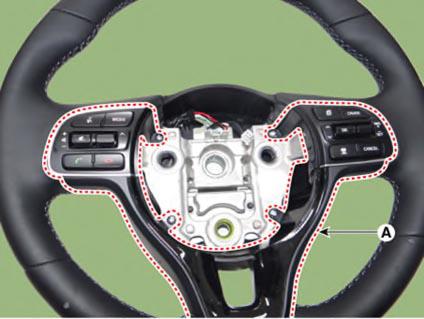

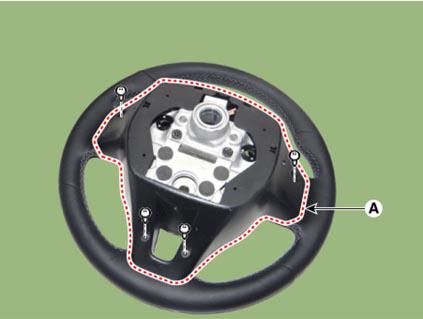

- Remove the steering back cover (A) after loosening the mounting screws.

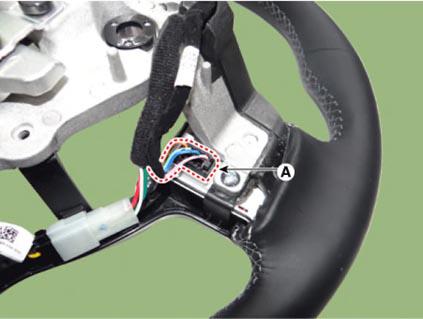

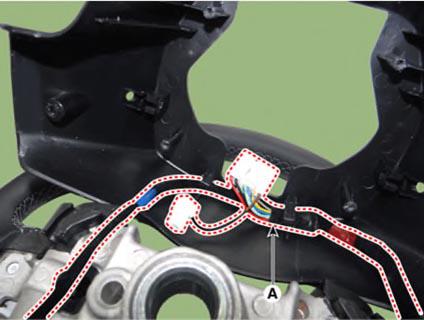

- Remove the wiring connector (A) from the steering back cover.

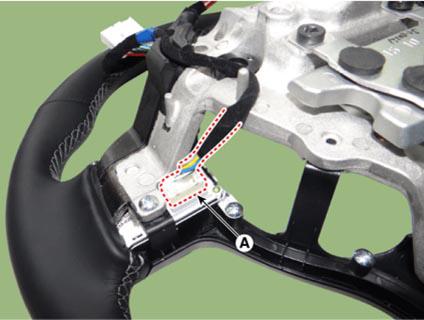

- Disconnect the steering wheel remote control connector (A).
[LH]
[RH]

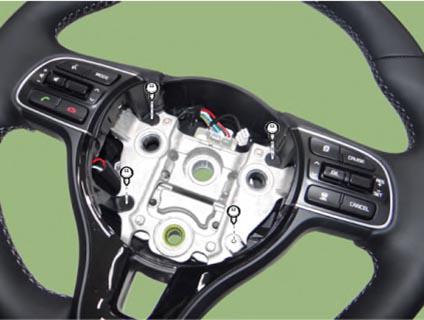

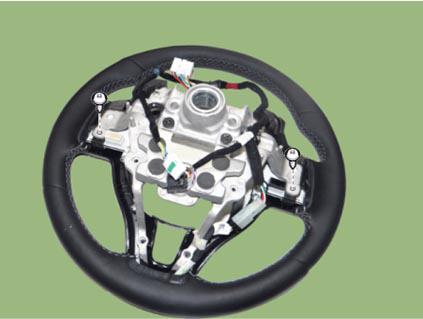

- Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

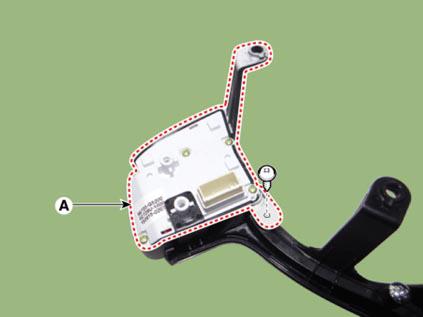

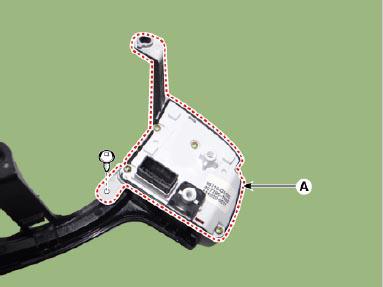

- Remove the steering wheel remote control (A) after loosening the mounting screws.
[LH]
[RH]
