2019 Kia Niro Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Check for resistance between terminals in each switch position (LH).

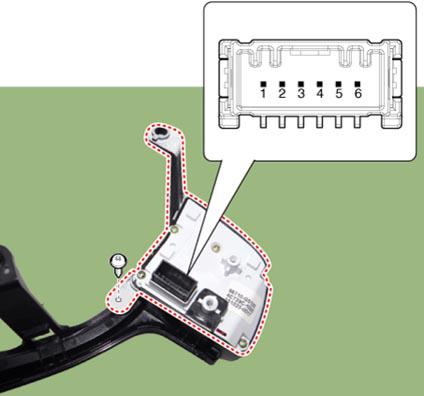

    G13005396Courtesy of KIA MOTORS AMERICA, INC.

    [LH: Audio + Hands free + Voice]

    Switch Connector terminal Resistance (±3%)
    SEEK Up 1-6 430 Ω
    SEEK Down 1.11 kΩ
    MODE 2.11 kΩ
    MUTE 3.11 kΩ
    Volume (+) 4.61 kΩ
    Volume (-) 6.81 kΩ
    Voice 10.71 kΩ
    END 18.91 kΩ
    SEND 40.91 kΩ
  2. Check for resistance between terminals in each switch position (RH).

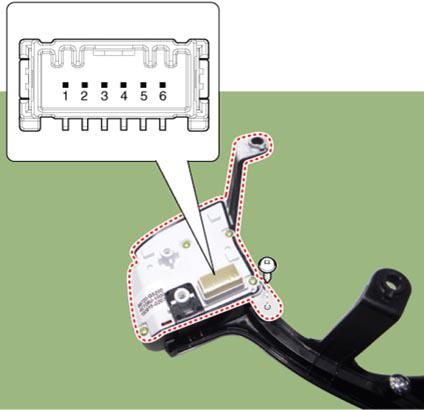

    G13005397Courtesy of KIA MOTORS AMERICA, INC.

    [RH: Cruise + Trip]

    Switch Connector terminal Resistance (±5%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    SCC (Following distance control) 3.63 kΩ
    Group 1-6 390 Ω
    Trip Up 610 Ω
    Trip Down 910 Ω
    ENTER 1.38 kΩ
