Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the steering wheel assembly.
(Refer to " STEERING WHEEL ")

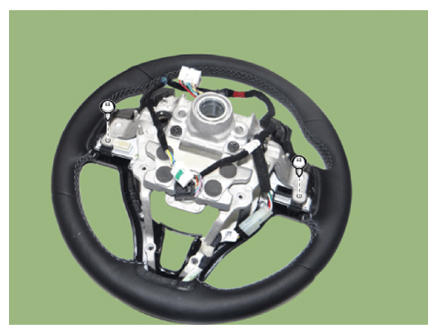

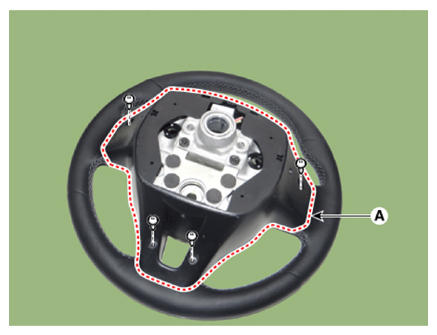

- Remove the steering back cover (A) after loosening the mounting screws.

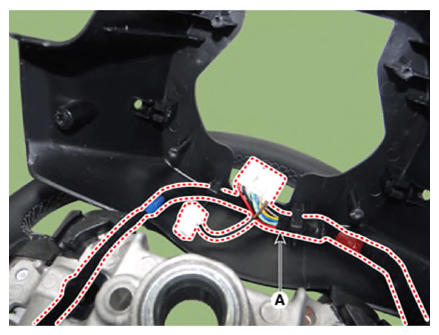

- Remove the wiring connector (A) from the steering back cover.

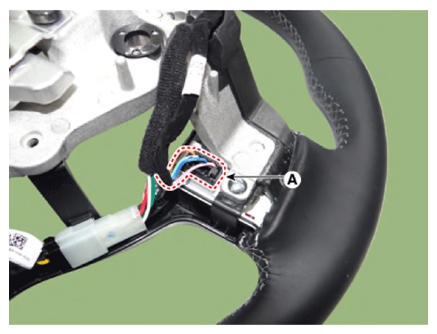

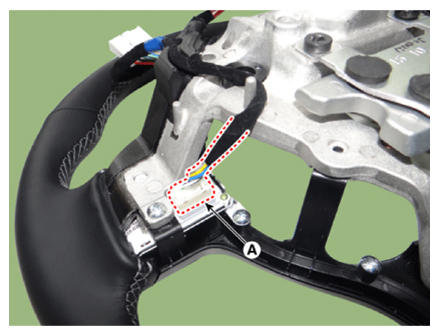

- Disconnect the steering wheel remote control connector (A).
[LH]
[RH]

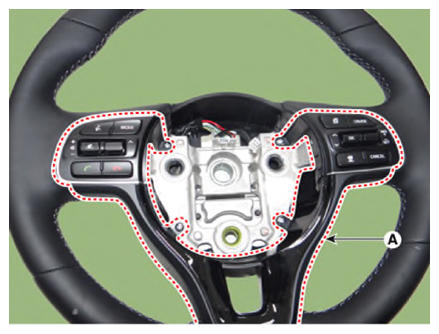

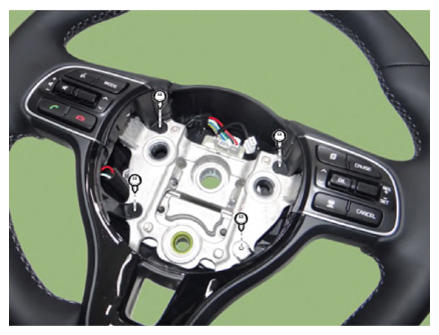

- Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

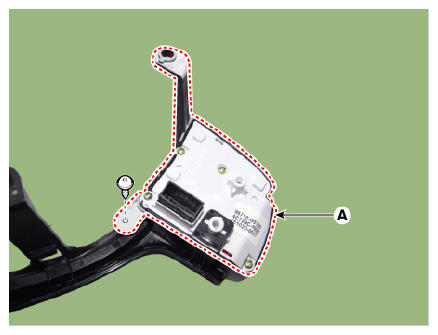

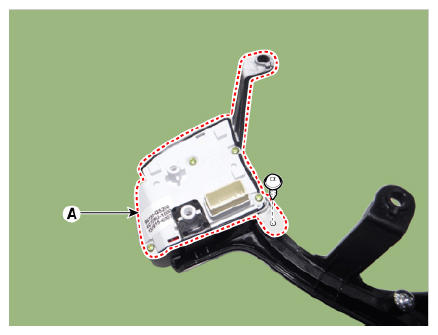

- Remove the steering wheel remote control (A) after loosening the mounting screws.
[LH]
[RH]
