NOTE:

Maintain clean condition so that foreign substance does not get into the automatic transmission.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.

Remove the under cover.
G 3.3 T-GDI LAMBDA II (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

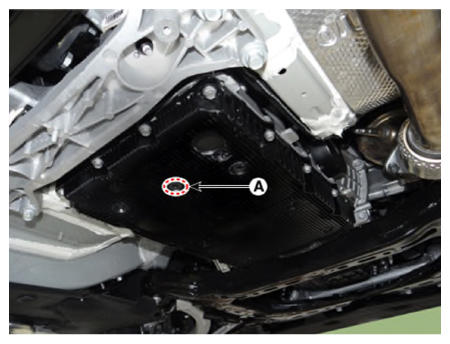

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

22.6 - 24.5 N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- ATF can be reused. Collect it in a clean beaker.

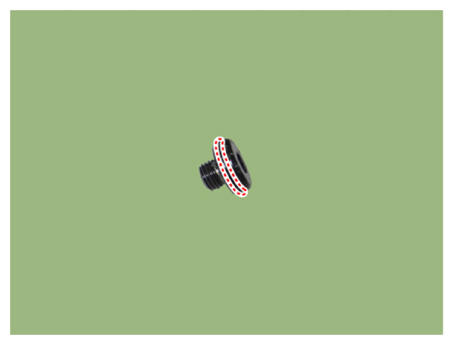

- The existing ATF drain plug O-ring must be replaced with a new one. (Do not reuse it.)
Courtesy of KIA MOTORS AMERICA, INC.

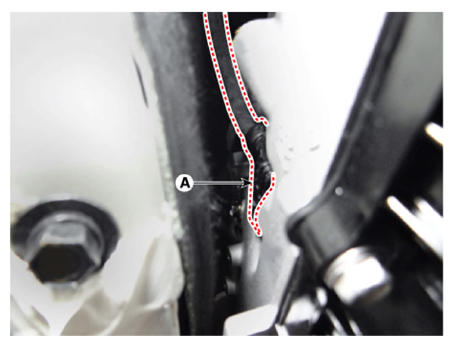

Disconnect the main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Remove the valve body cover.

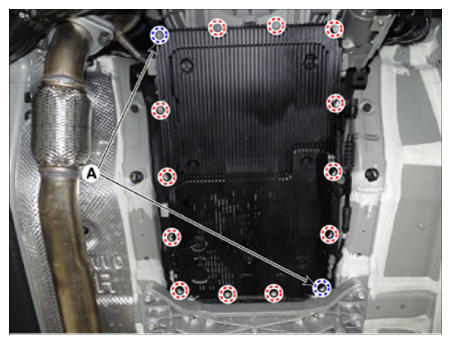

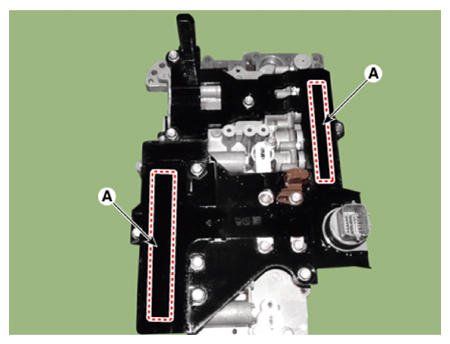

Loosen the all valve body mounting bolts except for the bolts (A) in the corner.

Tightening torque:

13.7 - 15.7 N.m (1.4 - 1.6 kgf.m, 10.1 - 11.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

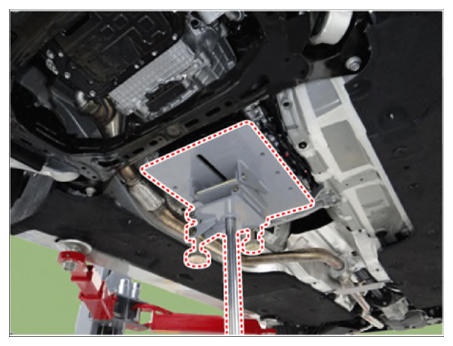

Loosen the two bolts (A) in the corner after supporting the valve body cover on a jack and then remove the valve body cover by lowering the jack slowly.

Courtesy of KIA MOTORS AMERICA, INC.

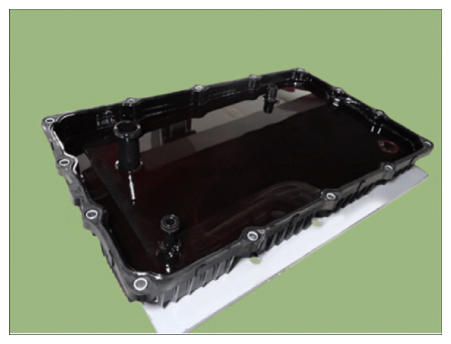

NOTE: Be careful when removing the valve body cover because the remaining ATF remains in the valve body cover.

Courtesy of KIA MOTORS AMERICA, INC.

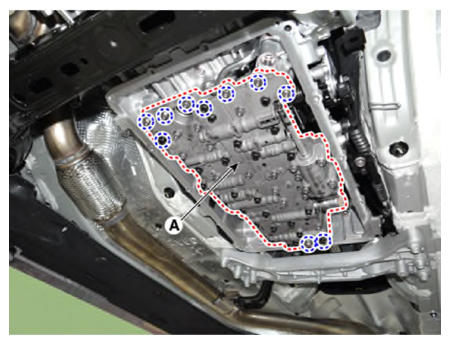

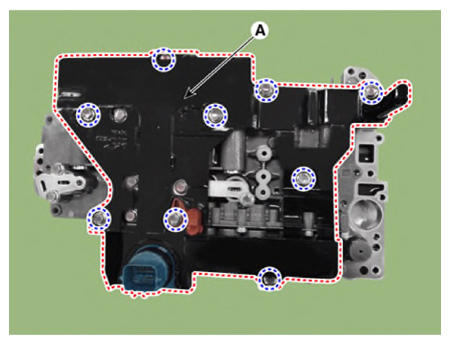

Remove the valve body assembly (A) after loosening the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the E-module (A) after loosening the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
