2019 Kia K900FACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

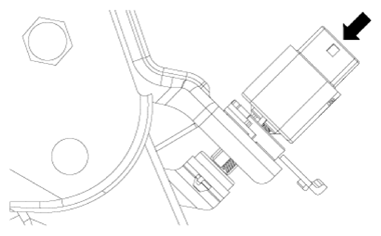

Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.

Courtesy of KIA MOTORS AMERICA, INC.

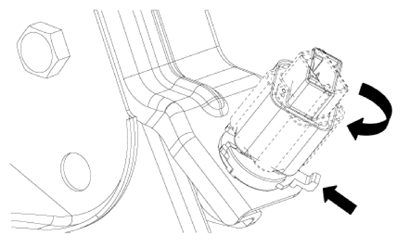

After inserting, turn the brake switch 45° clockwise, and then assemble locking plate by pushing.

Courtesy of KIA MOTORS AMERICA, INC.

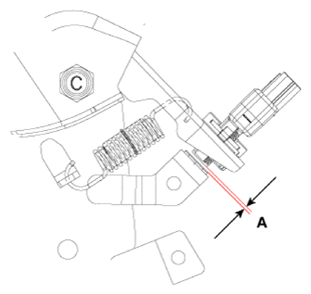

Confirm the gap (A) between stop lamp switch and bracket.
Stop lamp clearance (A):

1.0 - 2.0 mm (0.0394 - 0.0787 in.)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.0394 - 0.0787 in.), check the mounting clip and other parts around the stop lamp.
- If everything is normal, reinstall the stop lamp switch and check the clearance again.

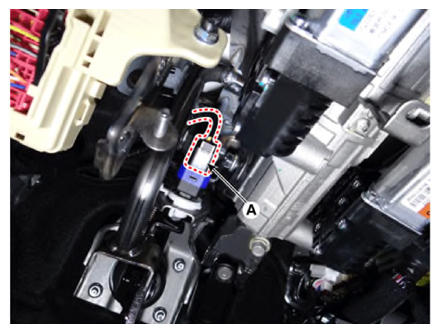

Connect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the knee airbag (KAB) module.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
