2019 Kia K900FACTORY OEM SERVICE PROCEDURE

Repair Procedures: Replacement

  1. Turn the ignition switch OFF.

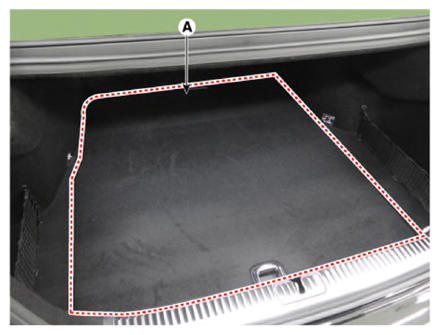

  2. Remove the luggage covering (A).
    G13143415Courtesy of KIA MOTORS AMERICA, INC.

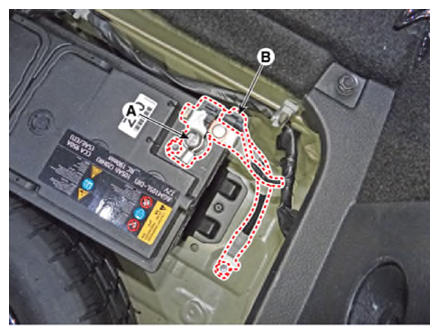

  3. Disconnect the battery negative (-) terminal (A).
  4. Disconnect the battery sensor connector (B).

    Tightening torque:

    5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb.ft)

    G13143416Courtesy of KIA MOTORS AMERICA, INC.

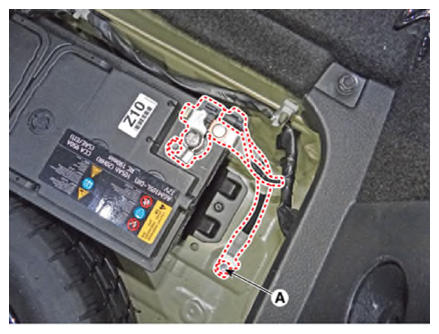

  5. Remove the battery sensor by loosening the mounting bolt (A).

    Tightening torque:

    27.0 - 33.0 N.m (2.7 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

    G13143417Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
NOTE:
  • For the vehicle equipped with a battery sensor, be careful not to damage the battery sensor when the battery is replaced or recharged.
    1. When replacing the battery, the new battery should be of the same type, capacity and brand with the previous one. If a battery of a different type is replaced, the battery sensor may recognize the battery to be abnormal.
    2. When installing the ground cable on the negative post of battery, tighten the clamp to the specified torque. An excessive tightening can damage the PCB internal circuit and the battery terminal.
    3. When recharging the battery, ground the negative terminal of the booster battery to the vehicle body.
