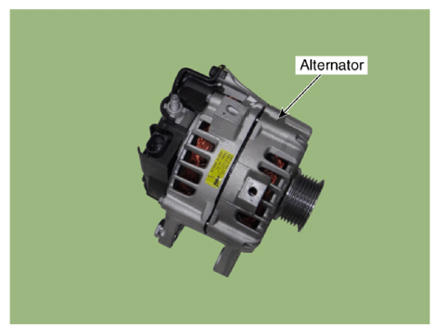

Repair Procedures: Replacement
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
- Remove the turbo manifold module.
(Refer to Engine Mechanical System - "TURBO MANIFOLD MODULE ")

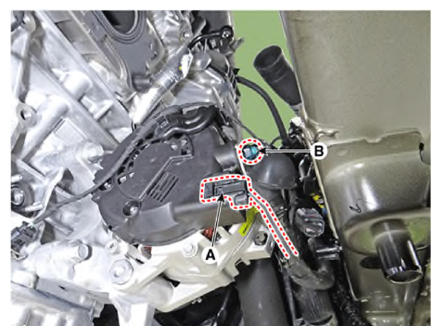

- Disconnect the alternator connector (A), and remove the cable (B) from alternator "B" terminal.
Tightening torque:
9.8 - 12.7 N.m (1.0 - 1.3 kgf.m, 7.2 - 9.4 lb.ft)

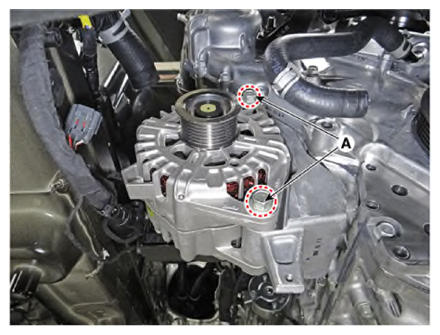

- Remove the alternator after loosening the mounting bolts (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)
- Install in the reverse order of removal.
