Repair Procedures: Replacement
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

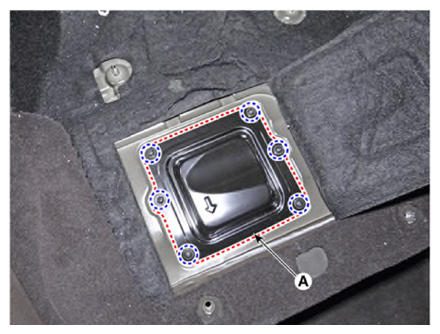

- Remove the sub fuel sender service cover (A) after loosening the mounting screws.

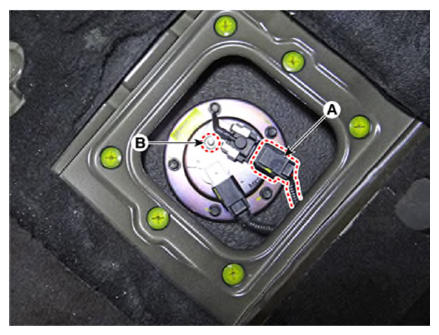

- Disconnect the fuel tank pressure sensor conector (A).
- Remove the fuel tank pressure sensor after loosening the mounting nut (B).
- Install in the reverse order of removal.
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
- Insert the sensor in the installation hole and be careful not to damage when installation.
