2019 Kia K900FACTORY OEM SERVICE PROCEDURE
Repair Procedures: Replacement
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear-left wheel & tire and wheel house cover.

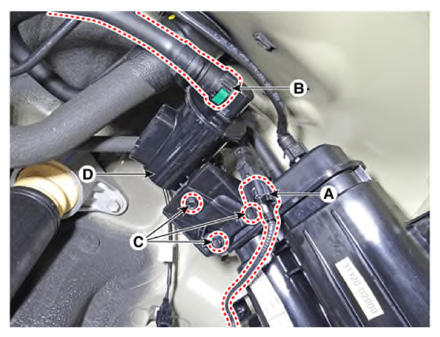

- Disconnect the canister close valve connector (A).
- Disconnect the vent hose quick-connector (B).
- Remove the fuel tank air filter & CCV assembly (D) after removing the bolts (C).

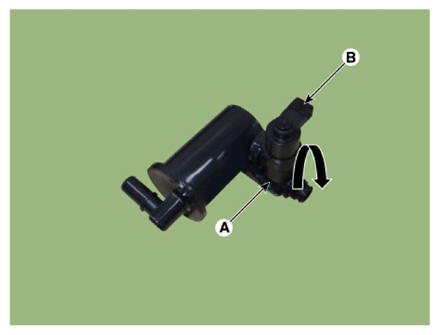

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
- Install in the reverse order of removal.
NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
