[Bank 1/Intake]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the variable force solenoid (VFS).
(Refer to Engine Control System - "VARIABLE FORCE SOLENOID (VFS) ")
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - "CYLINDER HEAD COVER ")

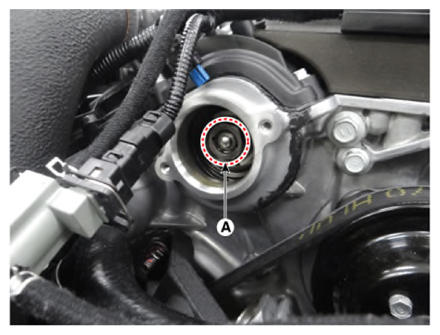

- Remove the installation nut (A), and then remove the cvvt oil control valve from the engine.
- Install in the reverse order of removal.
- Install the component to the specified torque.
- Note that internal damage may occur if the component drops. In this case, inspect it before installation.
- Apply the engine oil to the valve O-ring.
- Exactly distinguish the color of the valve and harness connectors in banks 1 and 2 when installing, or the engine will operate abnormally (Refer to the table below).
