2019 Kia Forte SFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

  1. Before installation, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
    G12830538Courtesy of KIA MOTORS AMERICA, INC.

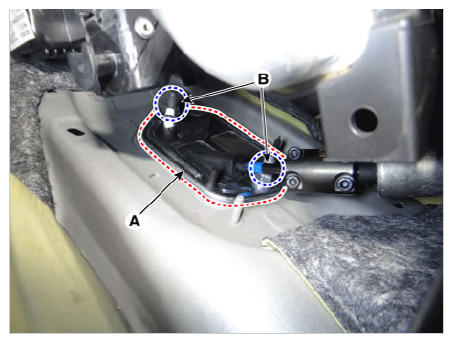

  2. Install the shift cable retainer (A) by tightening nuts (B).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G12830539Courtesy of KIA MOTORS AMERICA, INC.

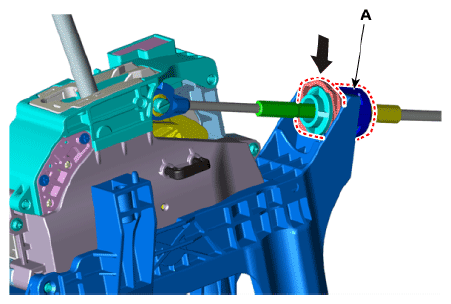

  3. Install the cable socket (A).
    G12830540Courtesy of KIA MOTORS AMERICA, INC.

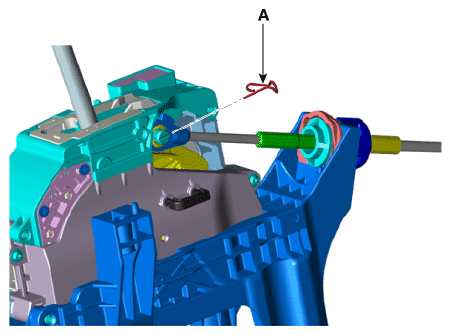

  4. Install the shift cable to the lever pin and then insert the snap pin (A).
    G12830541Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

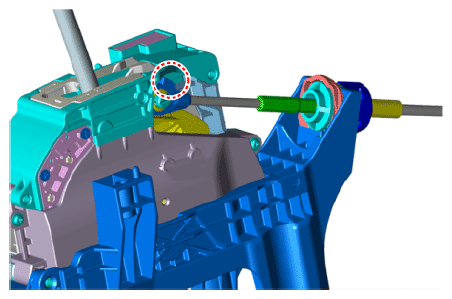

    • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
      G12830542Courtesy of KIA MOTORS AMERICA, INC.

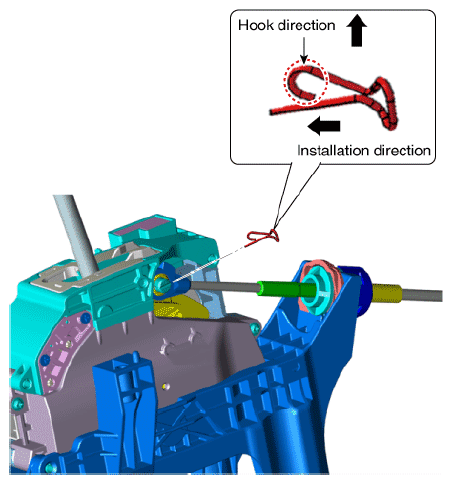

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G12830543Courtesy of KIA MOTORS AMERICA, INC.

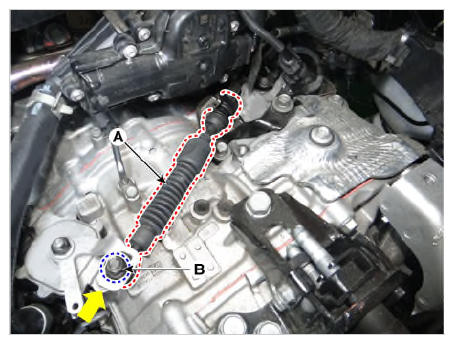

  5. Tighten the nut (B) to the specified torque after removing free play by pushing the shift cable (A) in the direction of the arrow.

    Tightening torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

    G12830544Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing shift cable clip must be replaced with new one. (Do not reuse it.)
    G12830545Courtesy of KIA MOTORS AMERICA, INC.

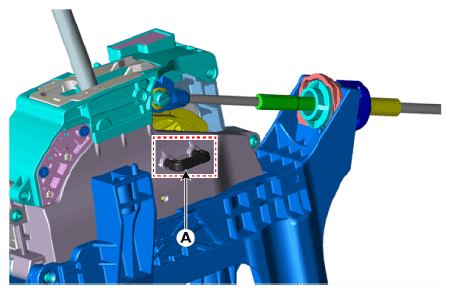

  6. Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
    G12830546Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

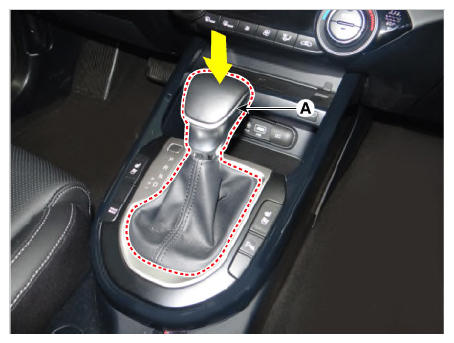

  8. Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.
    G12830547Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

  10. Install the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")
