2019 Kia Forte FE, Standard TransFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Shift the gear to "neutral".
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - " AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")

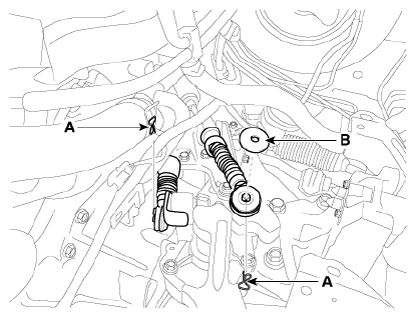

- Remove the snap pin (A) and the washer (B).

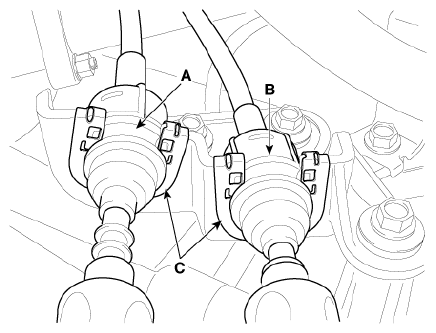

- Remove the select cable (A) and then shift cable (B) from the cable bracket (C).

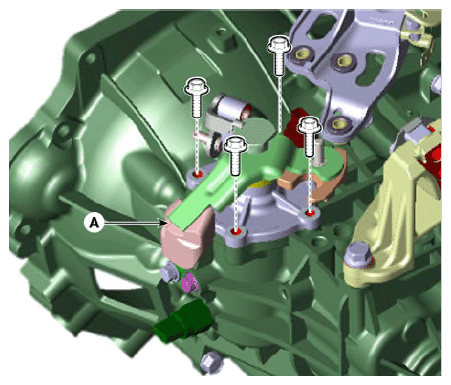

- Remove the control shaft lever assembly (A) after removing the bolts.
Tightening torque:
19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)
